Table 71. Configuration 1: 8x3.5-inch (ChipsetSATA ) on CPU 2
Order From To
1 SYS_PWR_1 (Power connector on system
bo
ard)
SYS_PWR_1 (Power connector on PIB)
2 SYS_PWR_2 (Power connector on system
board)
CPU_PWR_2 (Power connector on PIB)
3 BP_PWR_1 (Backplane power connector) SIG_PWR_2 (Power connector on PIB)
4 BP_DST_SA1 (Signal connector on backplane) SL13_PCH_SA1 (Signal connector on system board)
5 PIB_SIG_1 (PIB signal connector on system
board)
PIB_SIG_1 (PIB signal connectors on PIB)
6 PIB_SIG_2 (PIB signal connector on system
board)
PIB_SIG_2 (PIB signal connectors on PIB)
7 ODD (Optical disk drive) SL13_PCH_SA1 (Signal connector on system board)

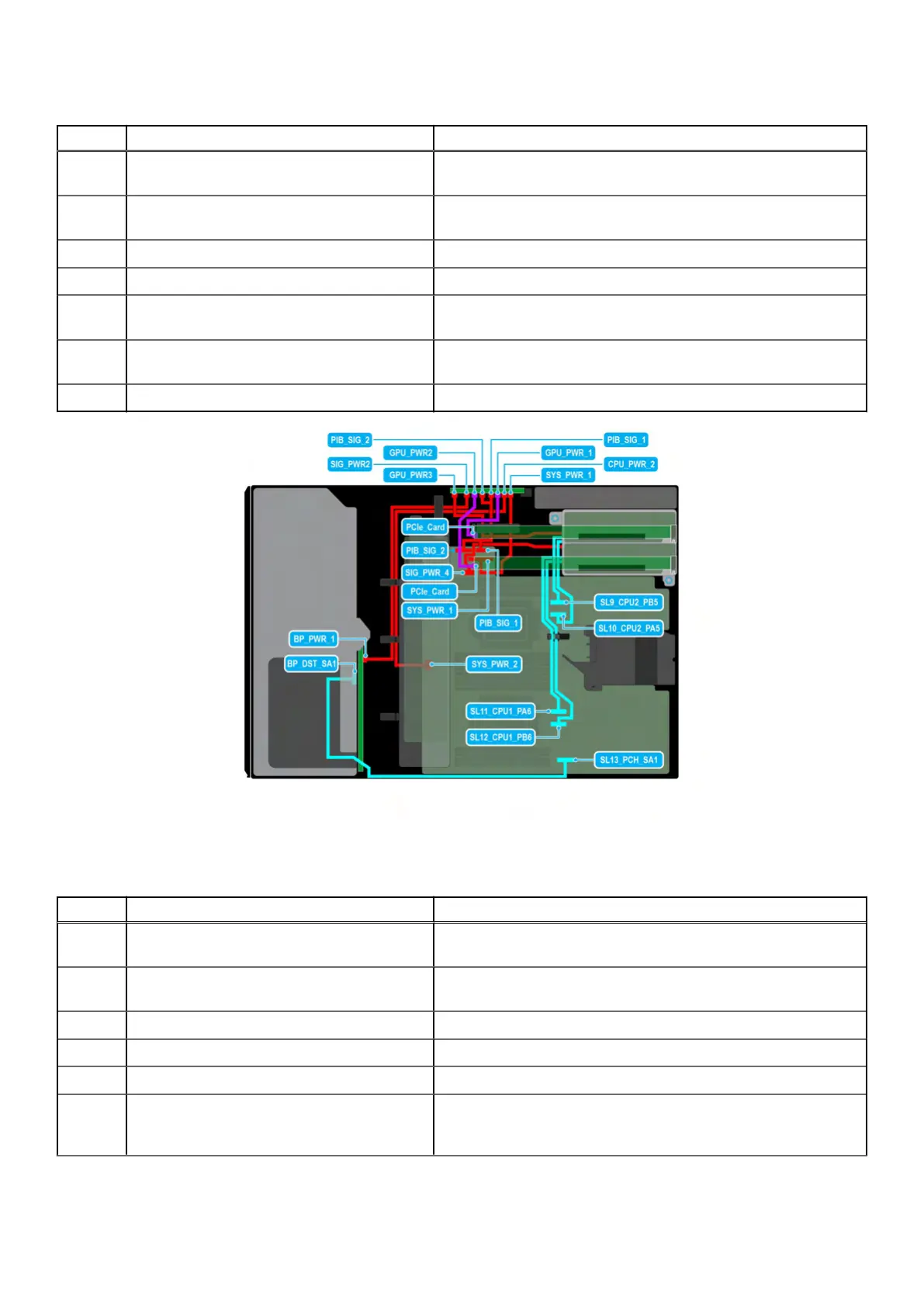

Figure 40. Configuration 2: 8x3.5-inch (ChipsetSATA) + GPUx2 on CPU 2
Table 72. Configuration 2: 8x3.5-inch (ChipsetSATA) + GPUx2 on CPU 2
Order From To
1 SYS_PWR_1 (Power connector on system
bo
ard)
SYS_PWR_1 (Power connector on PIB)
2 SYS_PWR_2 (Power connector on system
board)
CPU_PWR_2 (Power connector on PIB)
3 BP_PWR_1 (Backplane power connector) SIG_PWR_2 (Power connector on PIB)
4 BP_DST_SA1 (Signal connector on backplane) SL13_PCH_SA1 (Signal connector on system board)
5 PCIe card GPU_PWR1 and GPU_PWR2 (GPU power connectors on PIB)
6 PIB_SIG_1 (PIB signal connector on system
board) and PIB_SIG_2 (PIB signal connector
on system board)
PIB_SIG_1 (PIB signal connectors on PIB) and PIB_SIG_2 (PIB
signal connectors on PIB)
