Table 72. Configuration 2: 8x3.5-inch (ChipsetSATA) + GPUx2 on CPU 2 (continued)
Order From To
7 SIG_PWR_4 (Power connector on system
bo
ard) and GPU_PWR3 (GPU power
connector on PIB)
RISER_PWR_1 (GPU Riser)
8 SL9_CPU2_PB5 and SL10_CPU2_PA5 (Signal
connectors on system board)
GPU Riser 1
9 SL11_CPU1_PA6 and SL12_CPU1_PB6 (Signal
connectors on system board)
GPU Riser 2

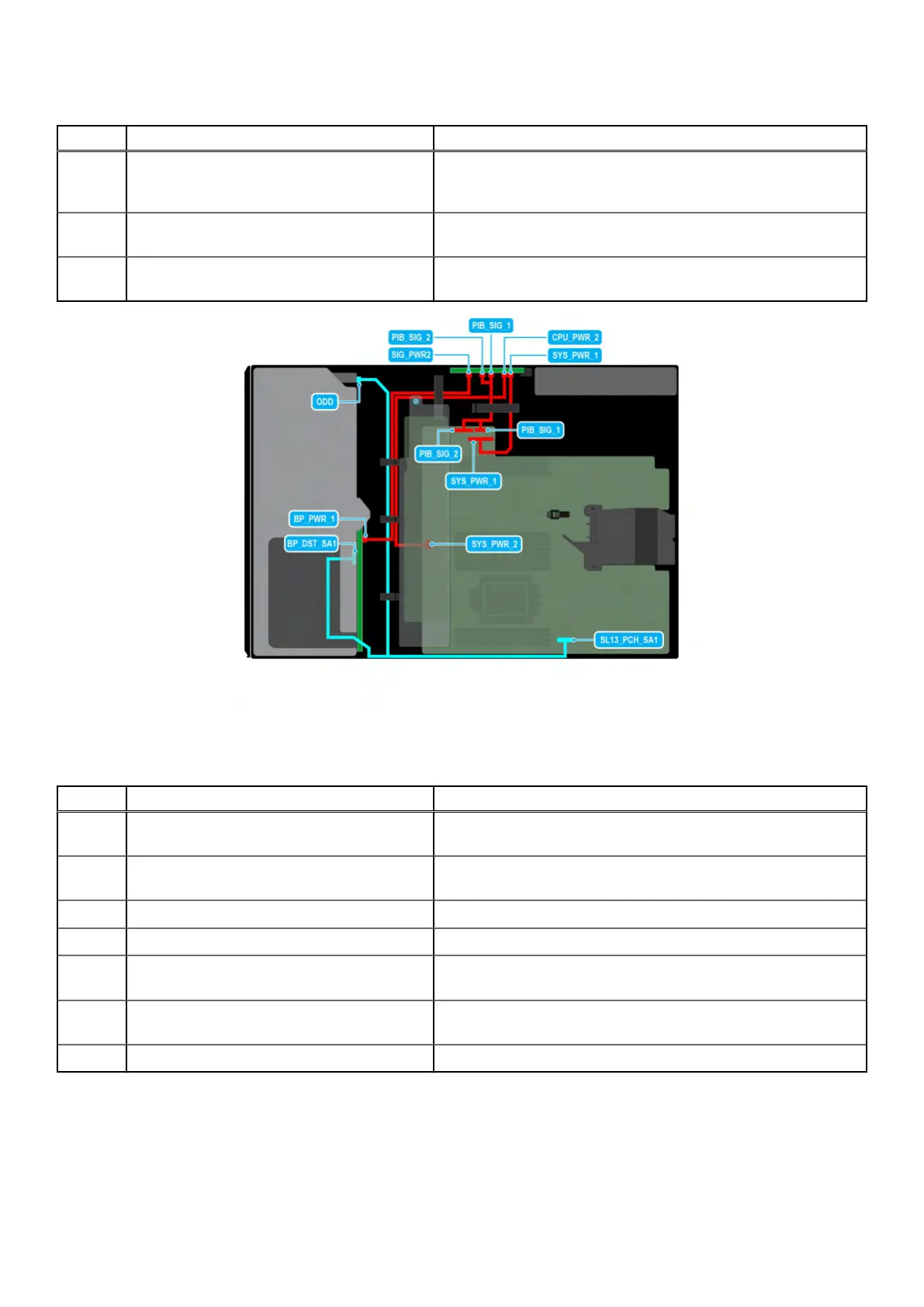

Figure 41. Configuration 3: 8x3.5-inch (ChipsetSATA) on CPU 1
Table 73. Configuration 3: 8x3.5-inch (ChipsetSATA) on CPU 1
Order From To
1 SYS_PWR_1 (Power connector on system
board)
SYS_PWR_1 (Power connector on PIB)
2 SYS_PWR_2 (Power connector on system
board)
CPU_PWR_2 (Power connector on PIB)
3 BP_PWR_1 (Backplane power connector) SIG_PWR_2 (Power connector on PIB)
4 BP_DST_SA1 (Signal connector on backplane) SL13_PCH_SA1 (Signal connector on system board)
5 PIB_SIG_1 (PIB signal connector on system
board)
PIB_SIG_1 (PIB signal connectors on PIB)
6 PIB_SIG_2 (PIB signal connector on system
bo
ard)
PIB_SIG_2 (PIB signal connectors on PIB)
7 ODD (Optical disk drive) SL13_PCH_SA1 (Signal connector on system board)
96 Installing and removing system components
