Dell Precision 3470 - Major Components of Precision 3470

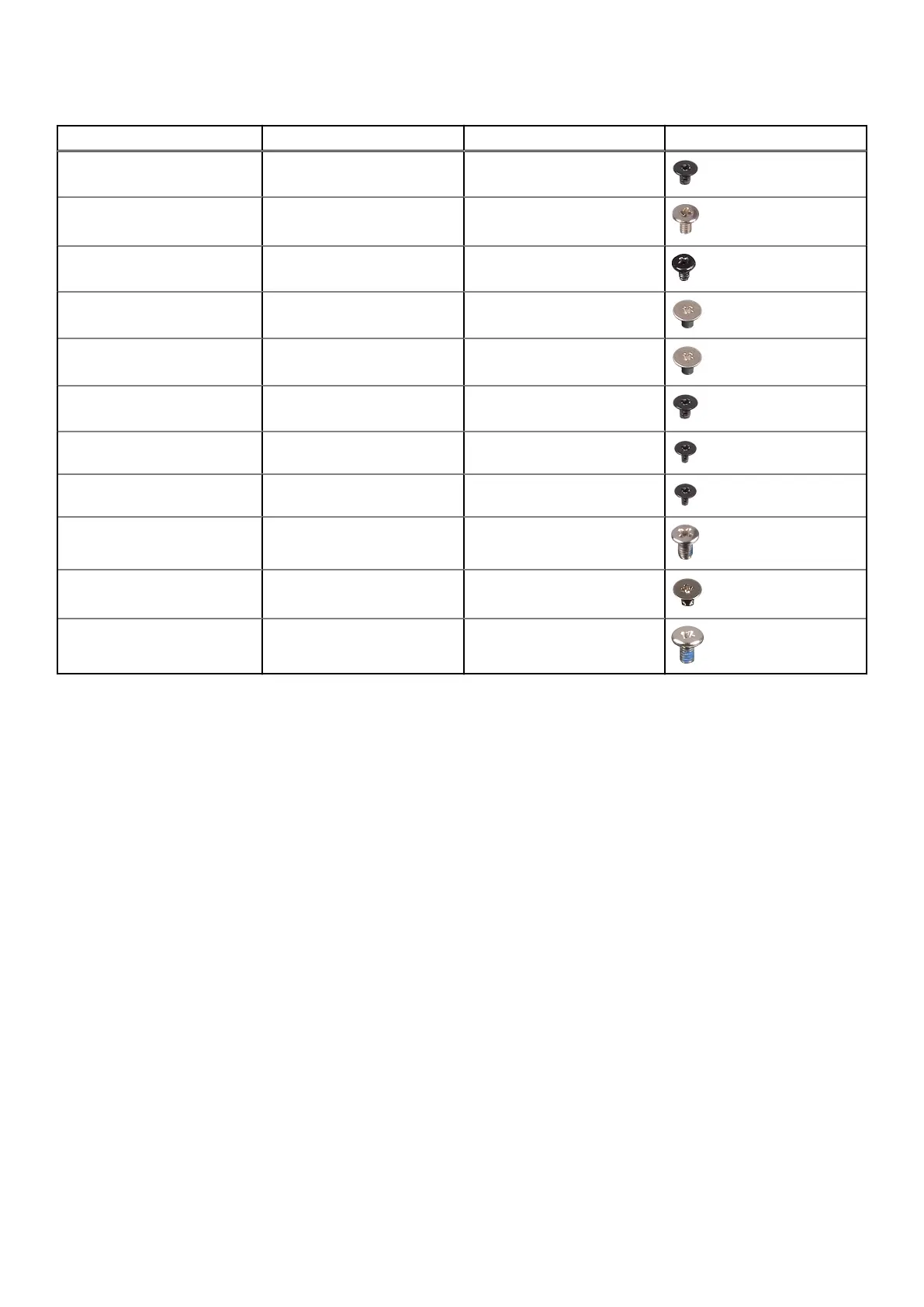

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
eDP cable/bracket M2x3 2
USB Type-C support bracket M2x5 3
System board M2x3 4
Power button M2x2.5 2
Smart card reader M2x2.5 3
LED board M2x3 1
Keyboard assembly M2x2 18
Keyboard bracket M2x2 5
Display assembly M2.5x5 (display hinges to
palm-rest assembly)
4
Display hinge M2.5x3 (display hinges to
display back cover)
4
Display panel M2.5x3 2
Major components of Precision 3470
The following image shows the major components of Precision 3470.
