Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

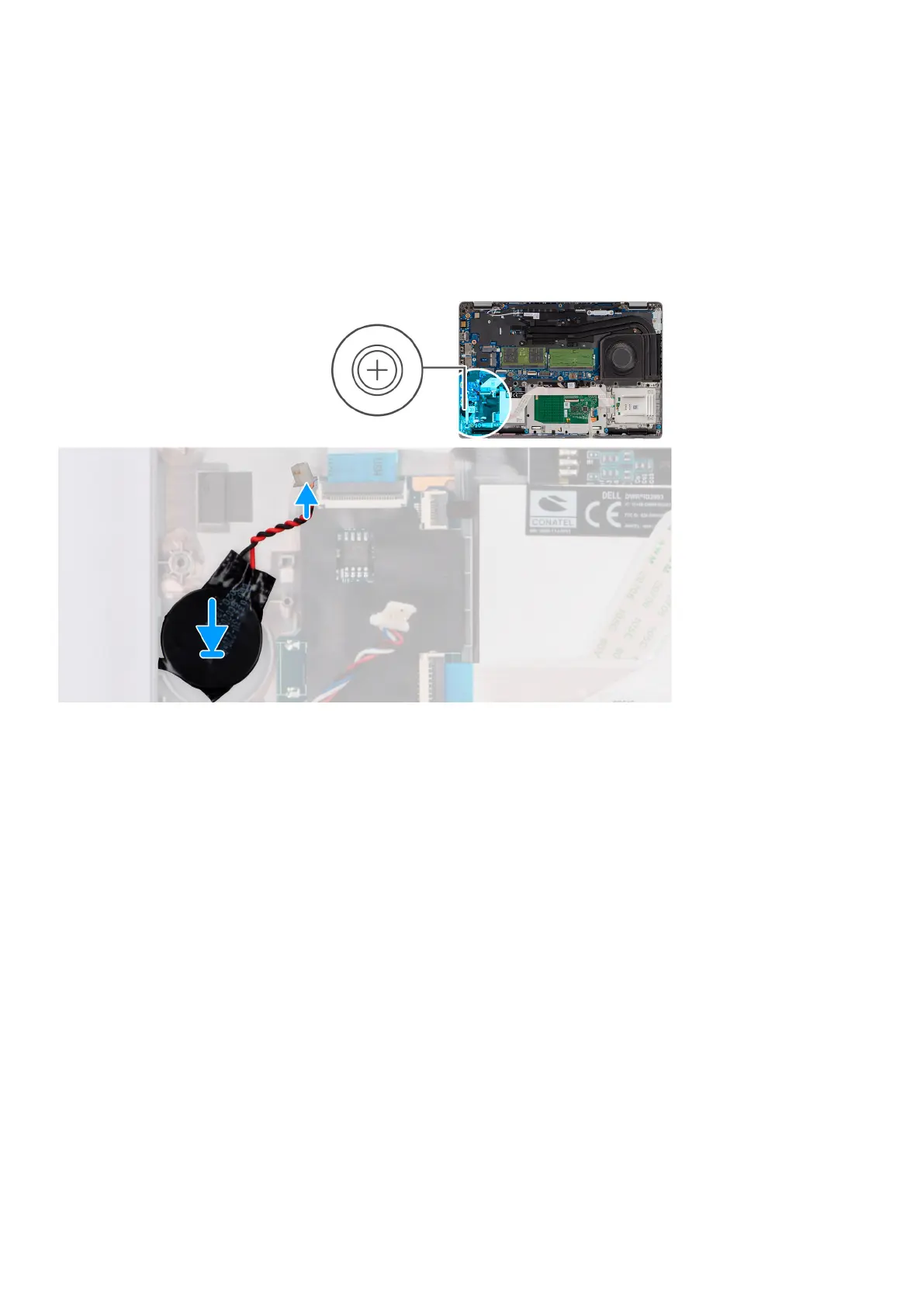

The following image indicates the location of the coin-cell battery and provides a visual representation of the installation
procedure.
Steps
Adhere the coin-cell battery to the slot on the palm-rest assembly.
Next steps
1. Install the assembly inner frame.
2. Install the battery.
3. Install the wireless card.
4. Install the 2280 solid-state drive or 2230 solid-state drive.
5. Install the base cover.
6. Install the microSD card.
7. Follow the procedure in After working inside your computer.
Keyboard assembly
Removing the keyboard assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
Removing and installing components
55
