Smart card reader
Removing the smart card reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the 2280 solid-state drive or 2230 solid-state drive.
5. Remove the battery.
6. Remove the wireless card.
7. Remove the assembly inner frame.
About this task

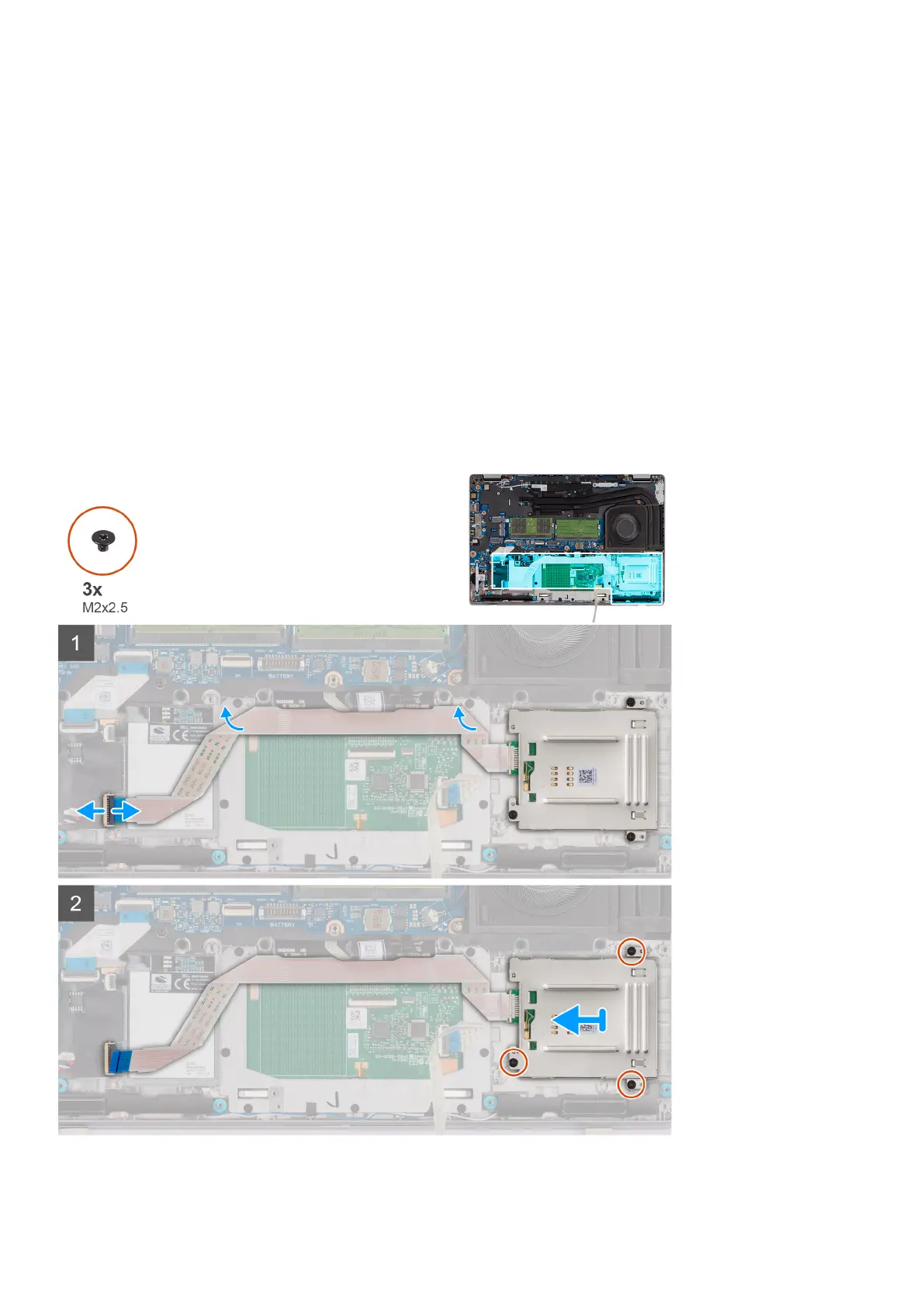

The following images indicate the location of the smart card reader and provide a visual representation of the removal
procedure.
52 Removing and installing components
