Installing the LED board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

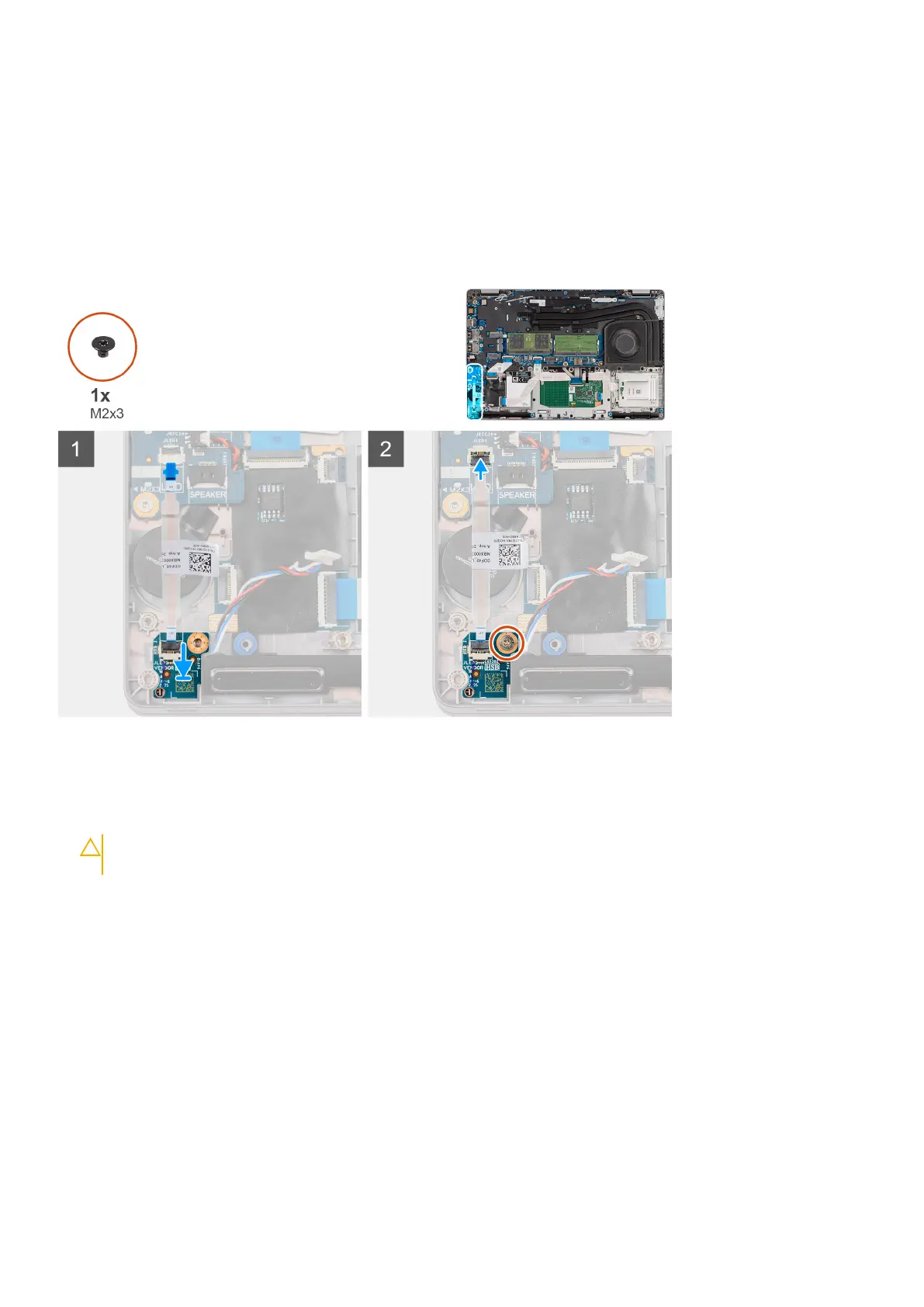

The following images indicate the location of the LED board and provide a visual representation of the installation procedure.
Steps
1. Align the screw hole on the LED board with the screw hole on the palm-rest assembly.
2. Replace the single screw (M2x3) to secure the LED board to the palm-rest assembly.
3. Route the LED-board cable and connect the cable to the connector on the system board.
CAUTION:
Do not route the LED-board cable under the coin-cell battery. Incorrect routing of the LED-board
cable may damage the LED board, LED-board cable, and system board.
Next steps
1. Install the assembly inner frame.
2. Install the battery.
3. Install the wireless card.
4. Install the 2280 solid-state drive or 2230 solid-state drive.
5. Install the base cover.
6. Install the microSD card.
7. Follow the procedure in After working inside your computer.
36
Removing and installing components
