Dell Precision 3470 - Installing the Assembly Inner Frame

Installing the assembly inner frame
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

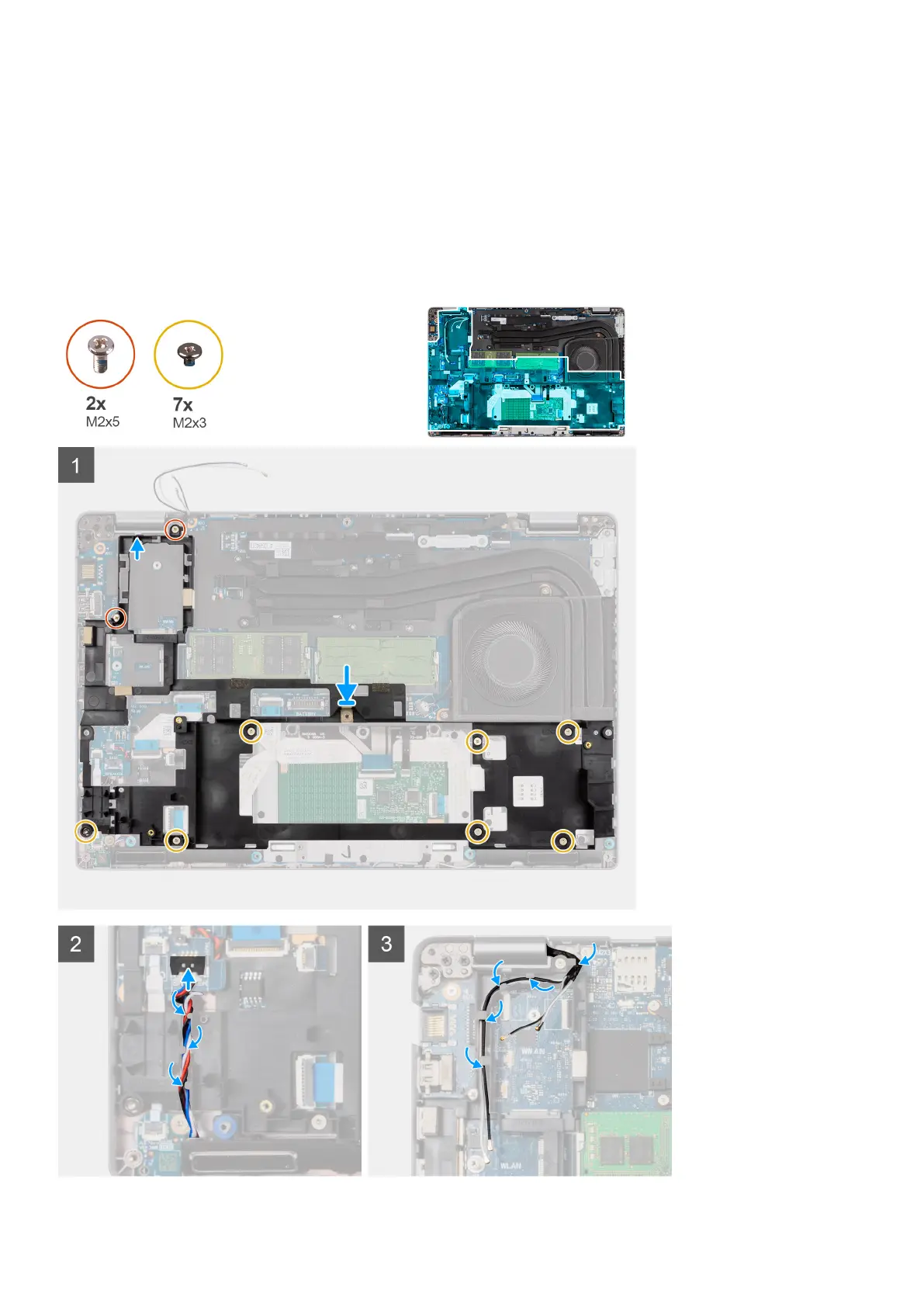

The following image indicates the location of the assembly inner frame and provides a visual representation of the installation
procedure.
Removing and installing components 33
