About this task

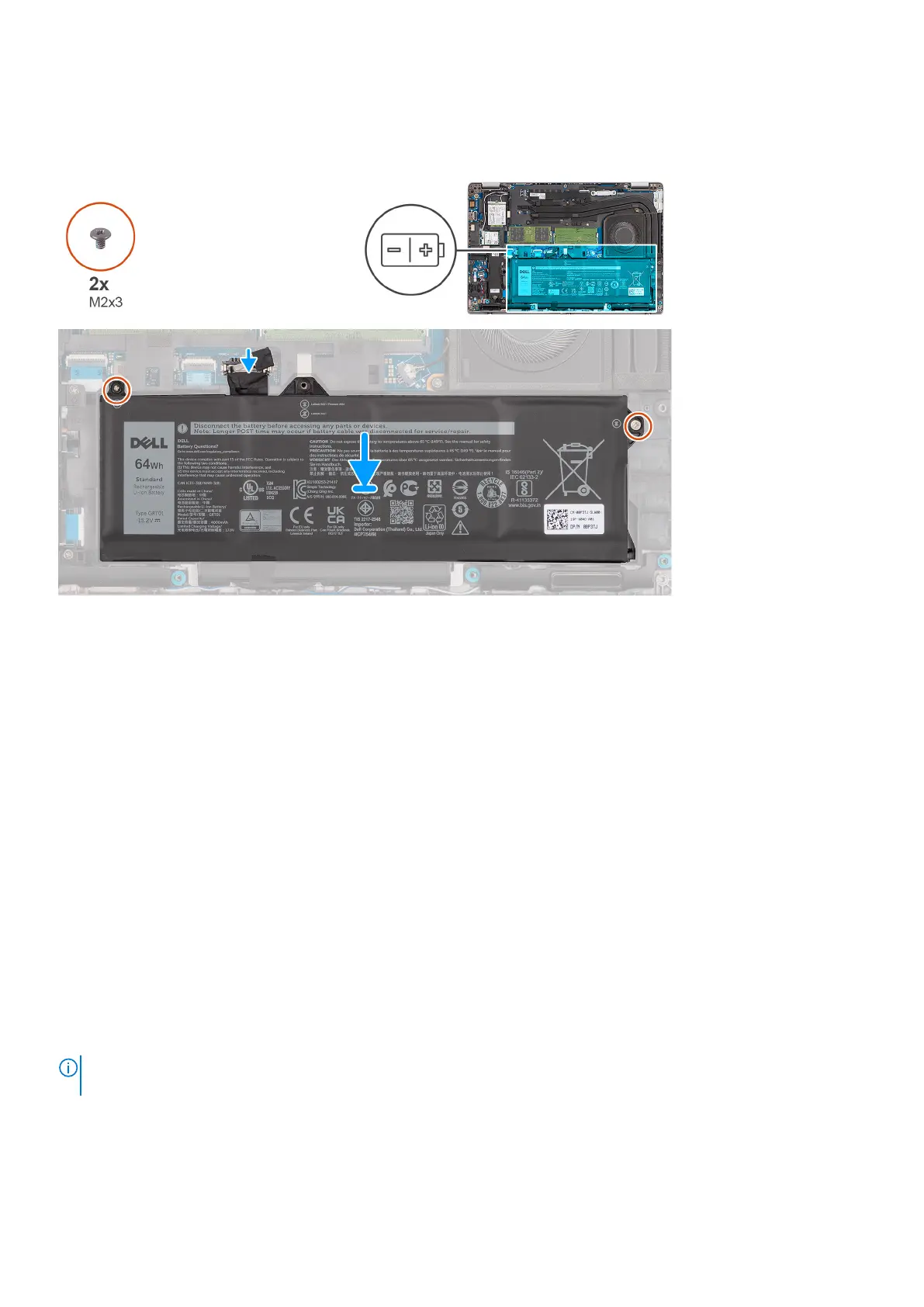

The following images indicate the location of the 4-cell (64 Wh) battery and provide a visual representation of the installation
procedure.
Steps
1. Align the screw holes on the 4-cell battery with the screw holes on the palm-rest and keyboard assembly.
2. Replace the two screws (M2x3) that secure the 4-cell battery to the palm-rest and keyboard assembly.
3. Connect the battery cable to the connector on the system board.
Next steps
1. Install the microSD card.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Battery cable
Removing the 4-cell battery cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
NOTE:
If battery is disconnected from system board for service, then there is a delay during system boot as the system
undergoes RTC battery reset.
About this task
The following images indicate the location of the battery cable and provide a visual representation of the removal procedure.
Removing and installing components
29
