About this task

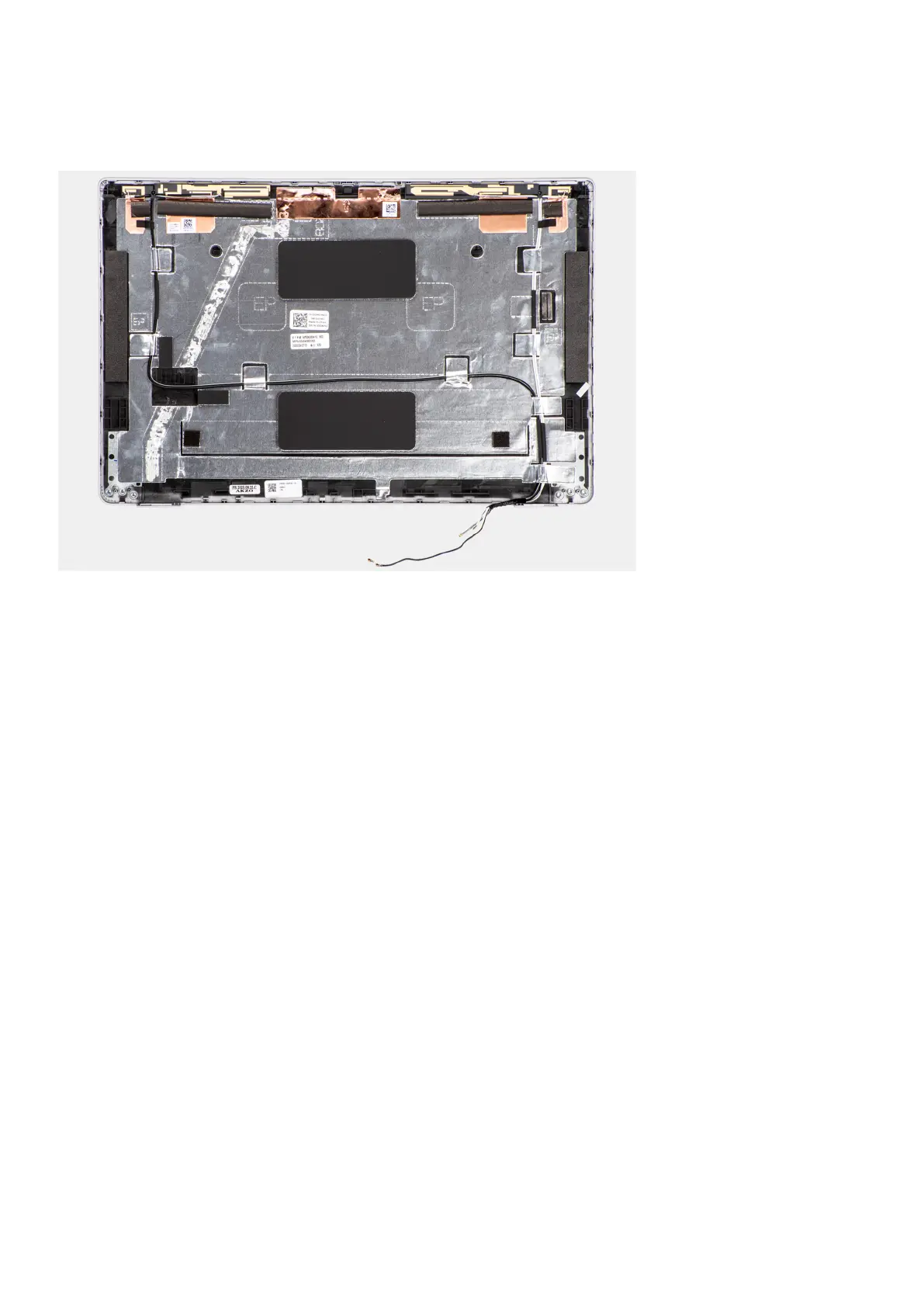

The following image indicates the location of the display back cover and provides a visual representation of the installation
procedure.
Steps
Place the display back cover on a flat surface.
Next steps
1. Install the display hinge.
2. Install the sensor board.
3. Install the eDP/display cable.
4. Install the camera module.
5. Install the display panel.
6. Install the display bezel.
7. Install the display assembly.
8. Install the wireless card.
9. Install the base cover.
10. Install the microSD card.
11. Follow the procedure in After working inside your computer.
Dummy SIM-card slot filler
Removing the dummy SIM-card slot filler
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the 2280 solid-state drive or 2230 solid-state drive.
5. Remove the memory modules.
6. Remove the battery.
90
Removing and installing components
