Next steps
1. Install the assembly inner frame.
2. Install the battery.
3. Install the base cover.
4. Install the microSD card.
5. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the 2280 solid-state drive or 2230 solid-state drive.
5. Remove the battery.
6. Remove the wireless card.
7. Remove the assembly inner frame.
8. Remove the heat sink.
About this task
The following image indicates the connectors on your system board.

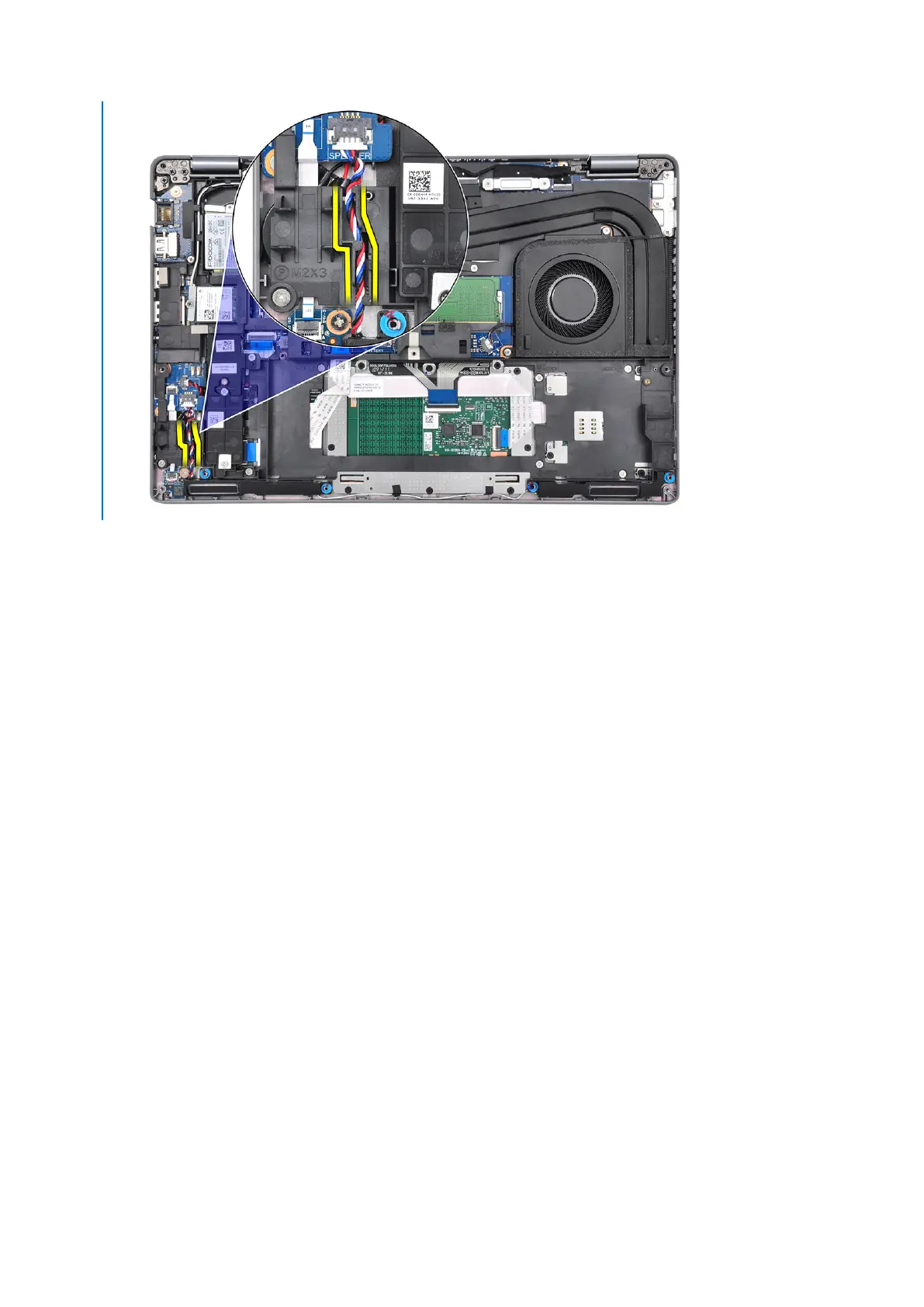

Figure 1. System board connectors
42
Removing and installing components
