Steps

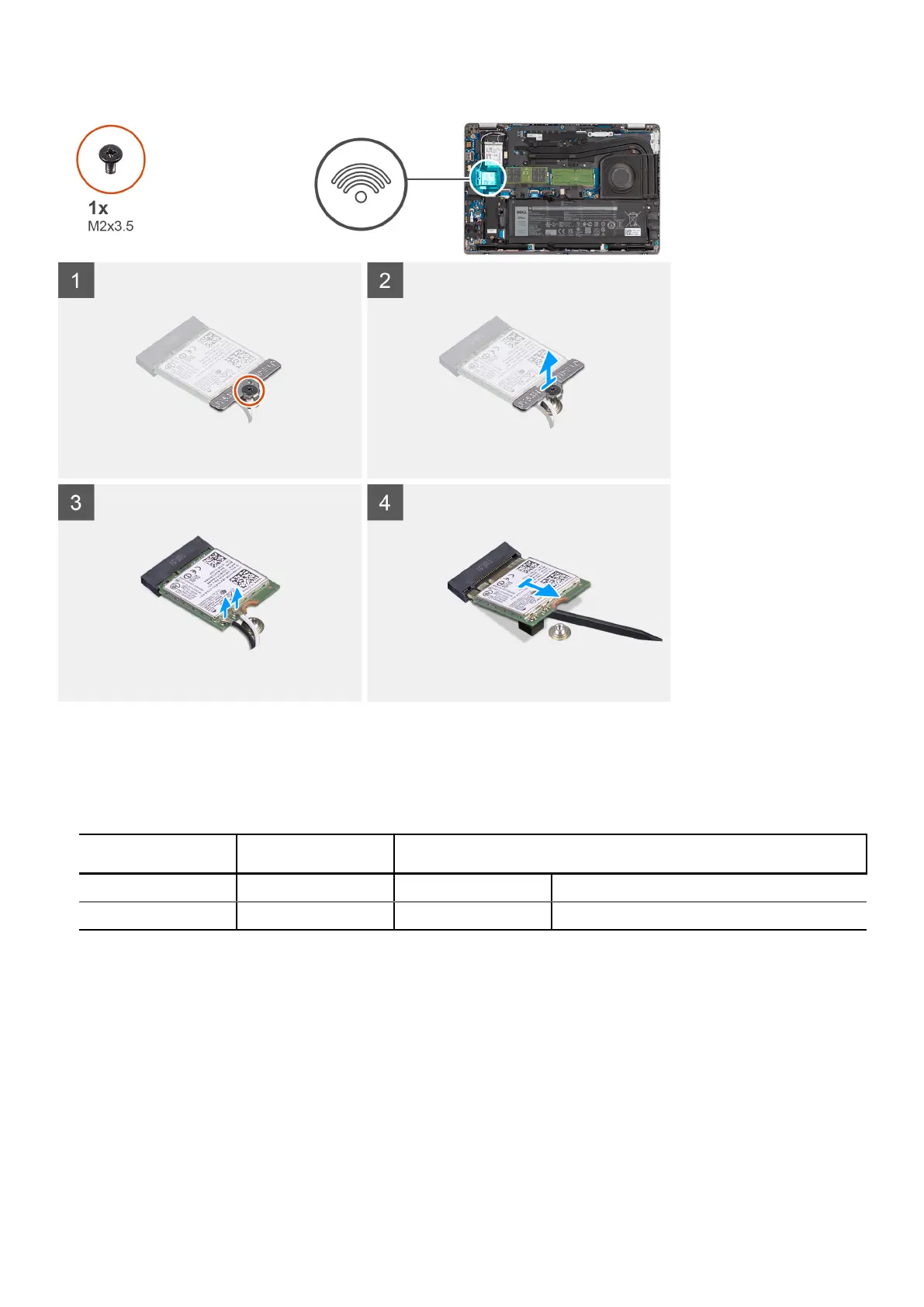

1. Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme:
Table 2. Antenna-cable color scheme
Connectors on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Auxiliary Black AUX ▲ (black triangle)
2. Align the notch on the wireless card with the tab on the wireless-card slot on the system board.
3. Slide and insert the wireless card at an angle into the wireless-card slot on the system board.
4. Align the screw hole on the wireless-card bracket to the screw hole on the wireless card and system board.
5. Tighten the single (M2x3.5) screw that secures the wireless-card bracket to the wireless card and the system board.
Next steps
1. Install the microSD card.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
20
Removing and installing components
