Steps
1. Slide the SIM card into the SIM card slot.
2. Snap the SIM card cover down.
3. Slide the SIM card cover towards the right of the system to lock the cover.
Next steps
1. Install the base cover.
2. Install the SD card.
3. Follow the procedure in after working inside your computer.
WLAN-kaart
Removing the WLAN card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
About this task

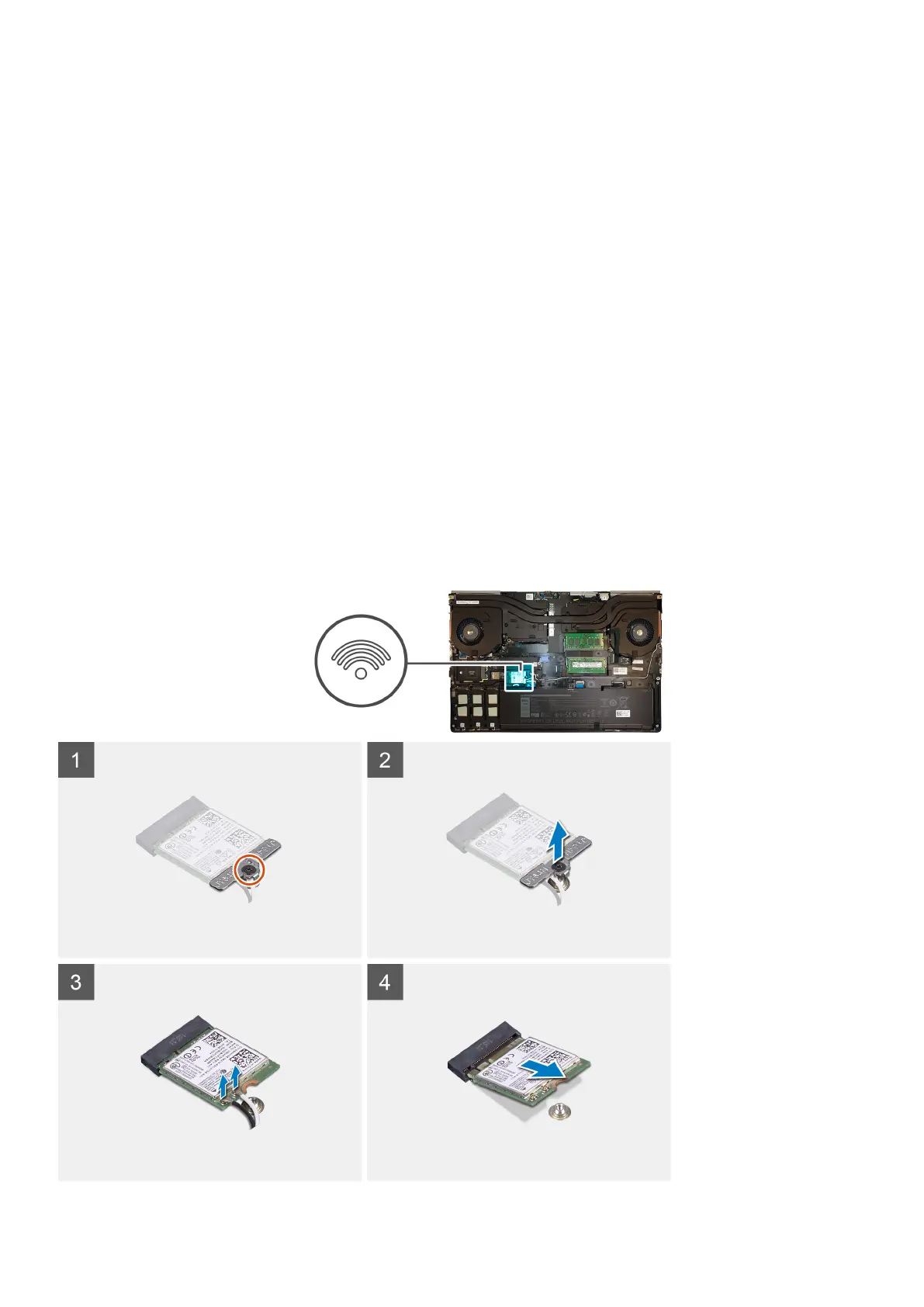

The figure indicates the location of the WLAN card and provides a visual representation of the removal procedure.
34
Demonteren en hermonteren
