About this task

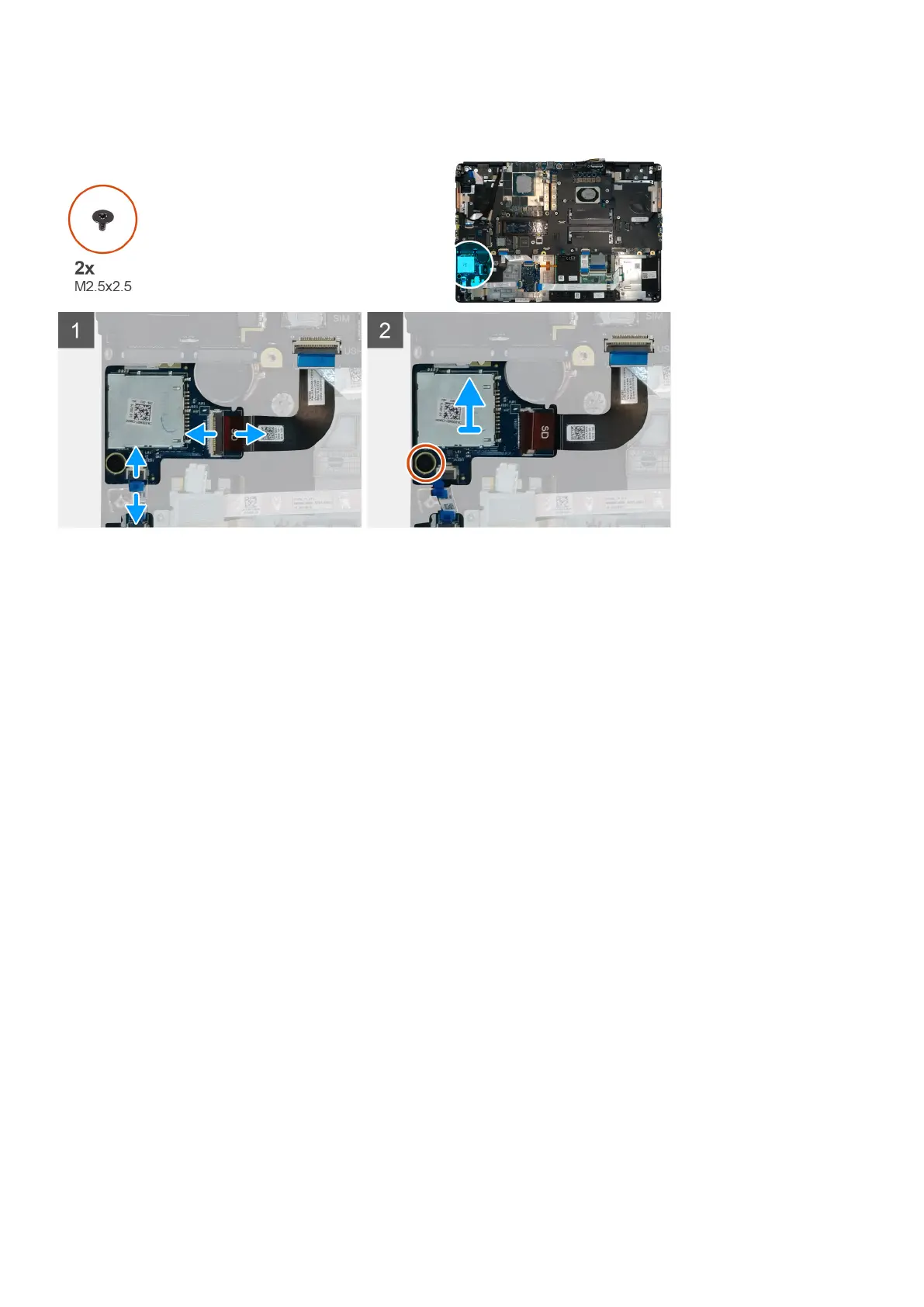

The figure indicates the location of the SD card reader and provides a visual representation of the removal procedure.
Steps
1. Disconnect the SD card reader cable from the connector on the system board.
2. Disconnect the LED board cable from the SD card reader on the bottom side of the computer.
3. Remove the (M2.5x2.5) screw that secures the SD card reader in place.
4. Slide and remove the SD card reader with its cable out of the computer.
Installing SD card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the SD card reader and provides a visual representation of the installation procedure.
