15. Install the base cover.
16. Install the secondary M.2 SSD.
17. Install the SSD door.
18. Install the SD card.
19. Follow the procedure in after working inside your computer.
Beeldschermassemblage
Removing the display assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the SSD door.
4. Remove the secondary M.2 SSD.
5. Remove the base cover.
6. Remove the battery.
7. Remove the primary M.2 SSD.
8. Remove the SIM card.
9. Remove the secondary memory.
10. Remove the WWAN card.
11. Remove the WLAN card.
12. Remove the keyboard lattice.
13. Remove the keyboard.
14. Remove the primary memory.
15. Remove the heat-sink assembly.
About this task

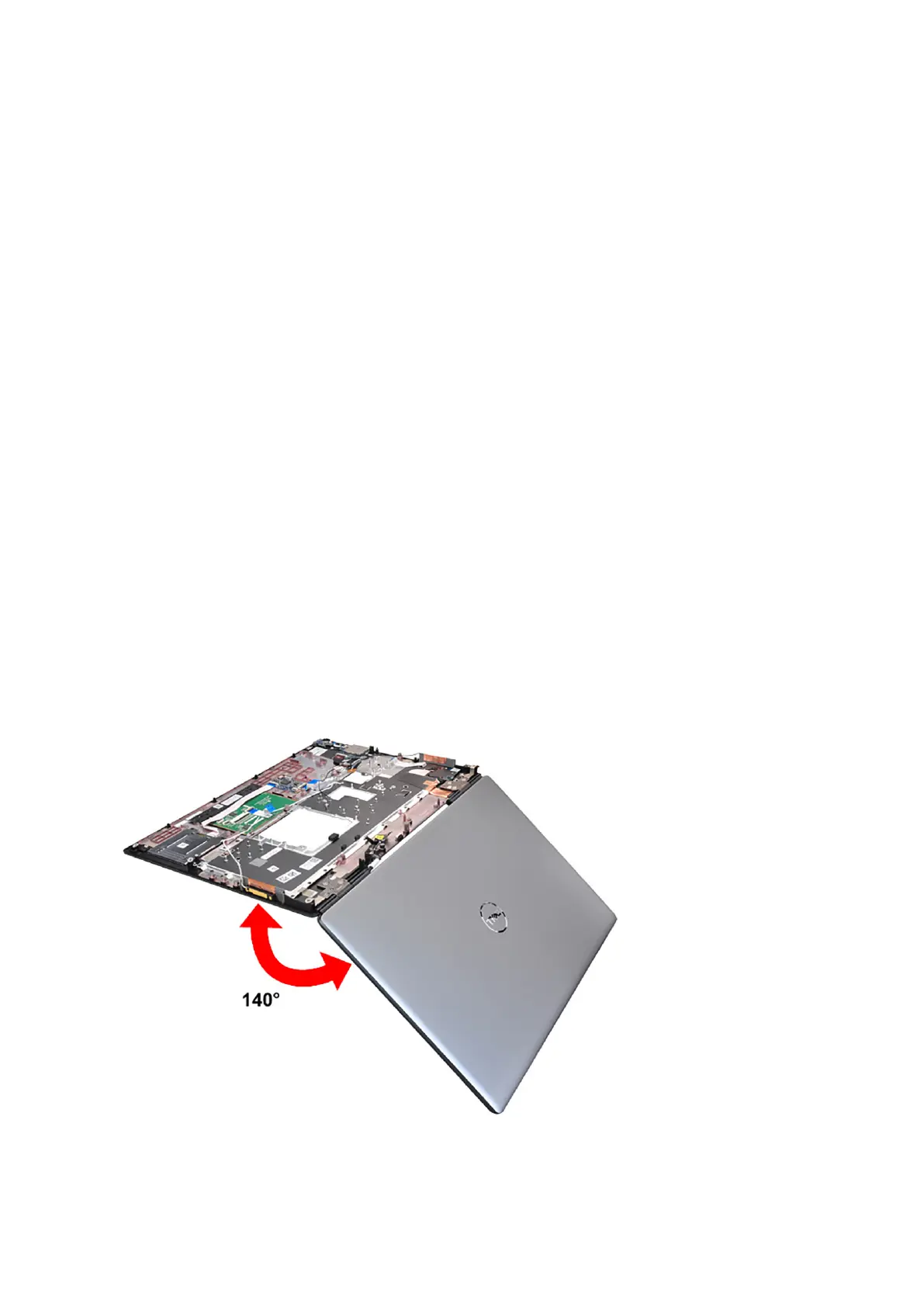

The figure indicates the location of the display assembly and provides a visual representation of the removal procedure.
74
Demonteren en hermonteren
