Steps

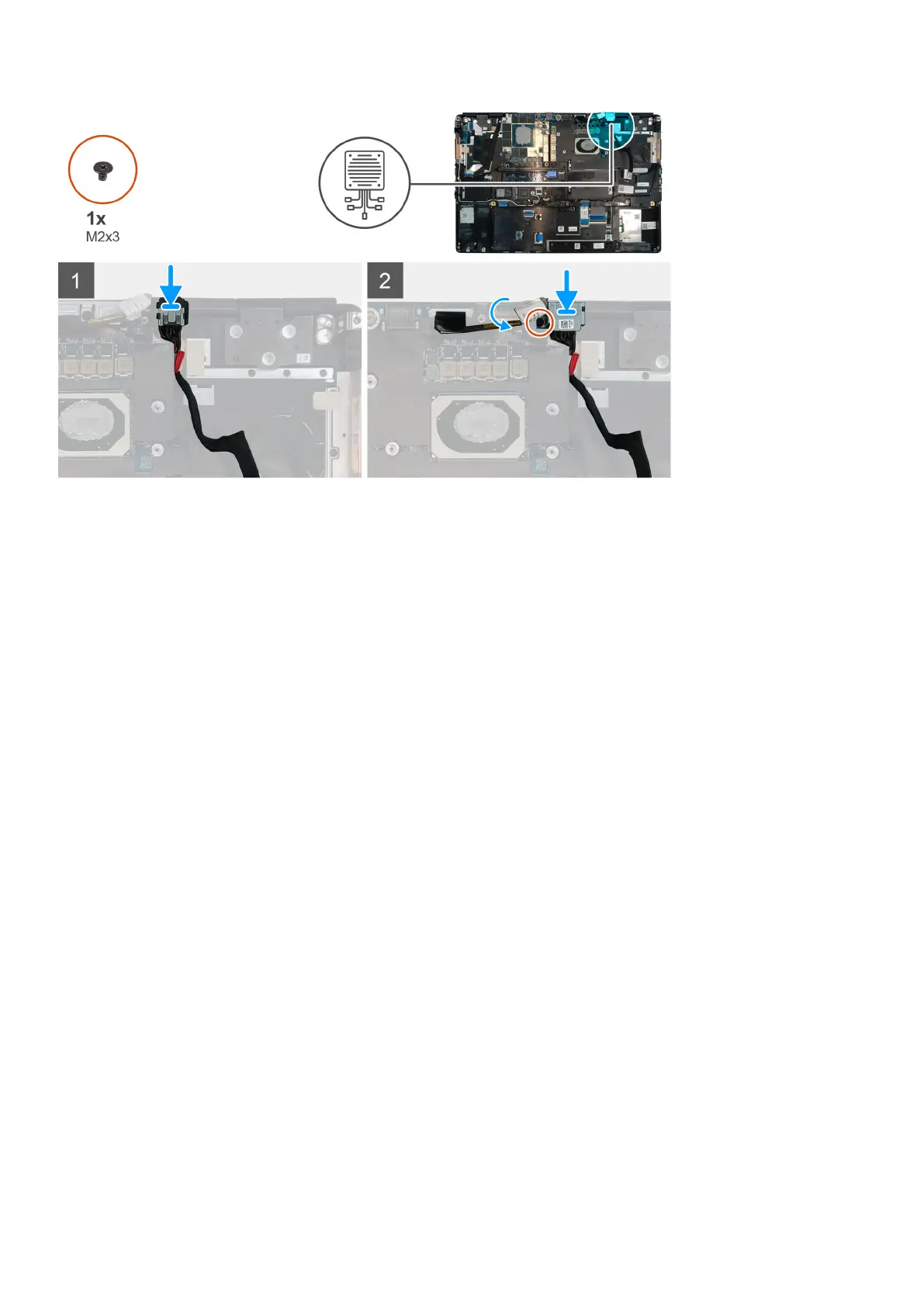

1. Align and place the power-adapter cable on the computer.
2. Place the power-adapter port into its slot on the plamrest.
3. Replace the power-adapter cable bracket on the power-adapter port.
4. Replace the (M2x3) screw to secure the power-adapter cable bracket to the computer.
5. Connect the power-adapter cable to the connector on the system board.
Next steps
1. Install the heat-sink assembly.
2. Install the battery.
3. Install the base cover.
4. Install the SD card.
5. Follow the procedure in after working inside your computer.
Aan-uitknopkaart
Removing the power button board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the heat-sink assembly.
About this task
The figure indicates the location of the power button board and provides a visual representation of the removal procedure.
Steps
1. Disconnect the power button board cable from the connector on the system board.
2. Peel the power button board cable from the palmrest.
