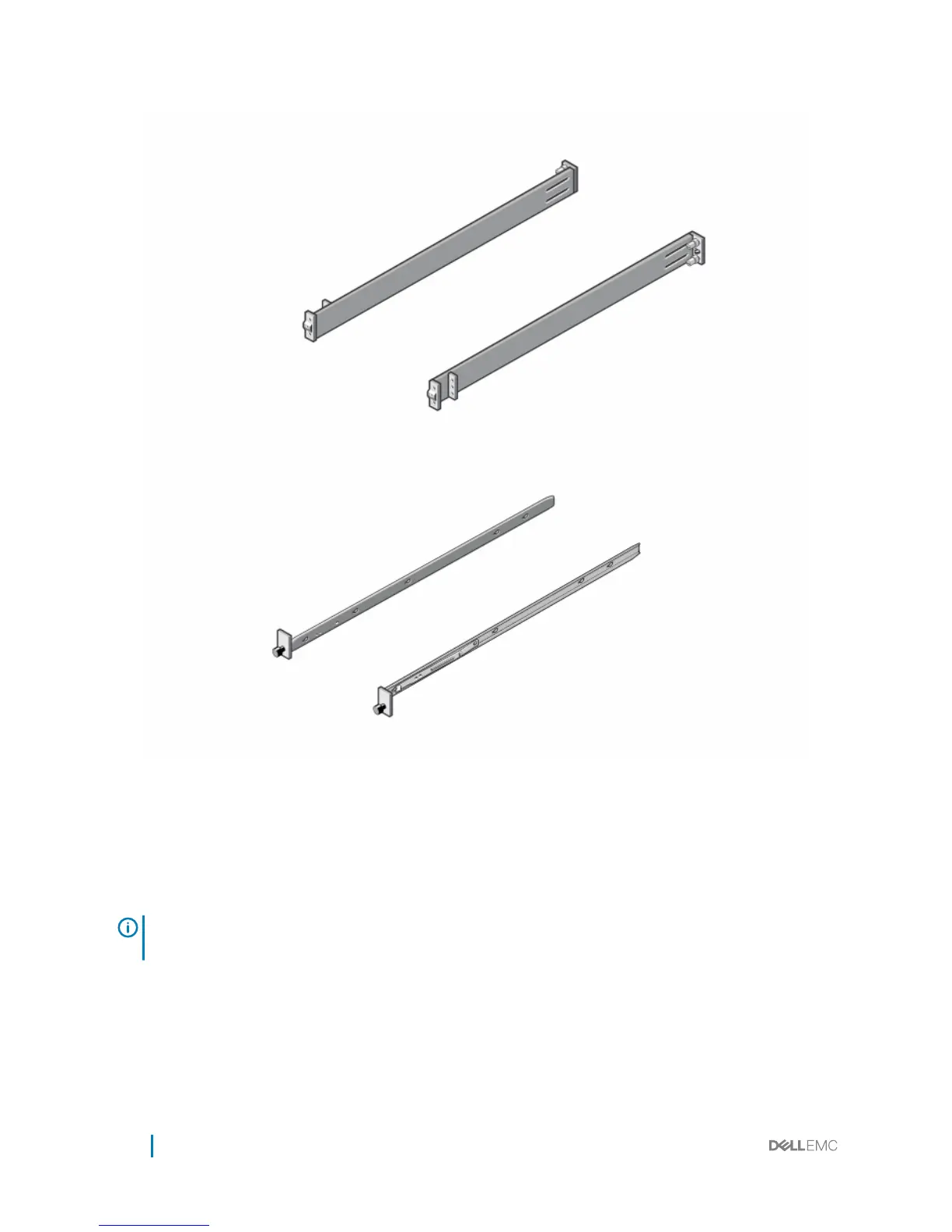

Figure 2. Separate rails
1U tool-less mount installation
NOTE
: For more installation instructions, see the installation labels attached to the
rail assembly.
1 Face the ReadyRails ange ears facing outward. Place one rail between the left and
right vertical posts. Align and seat the back ange rail pegs in the back vertical post
ange.
