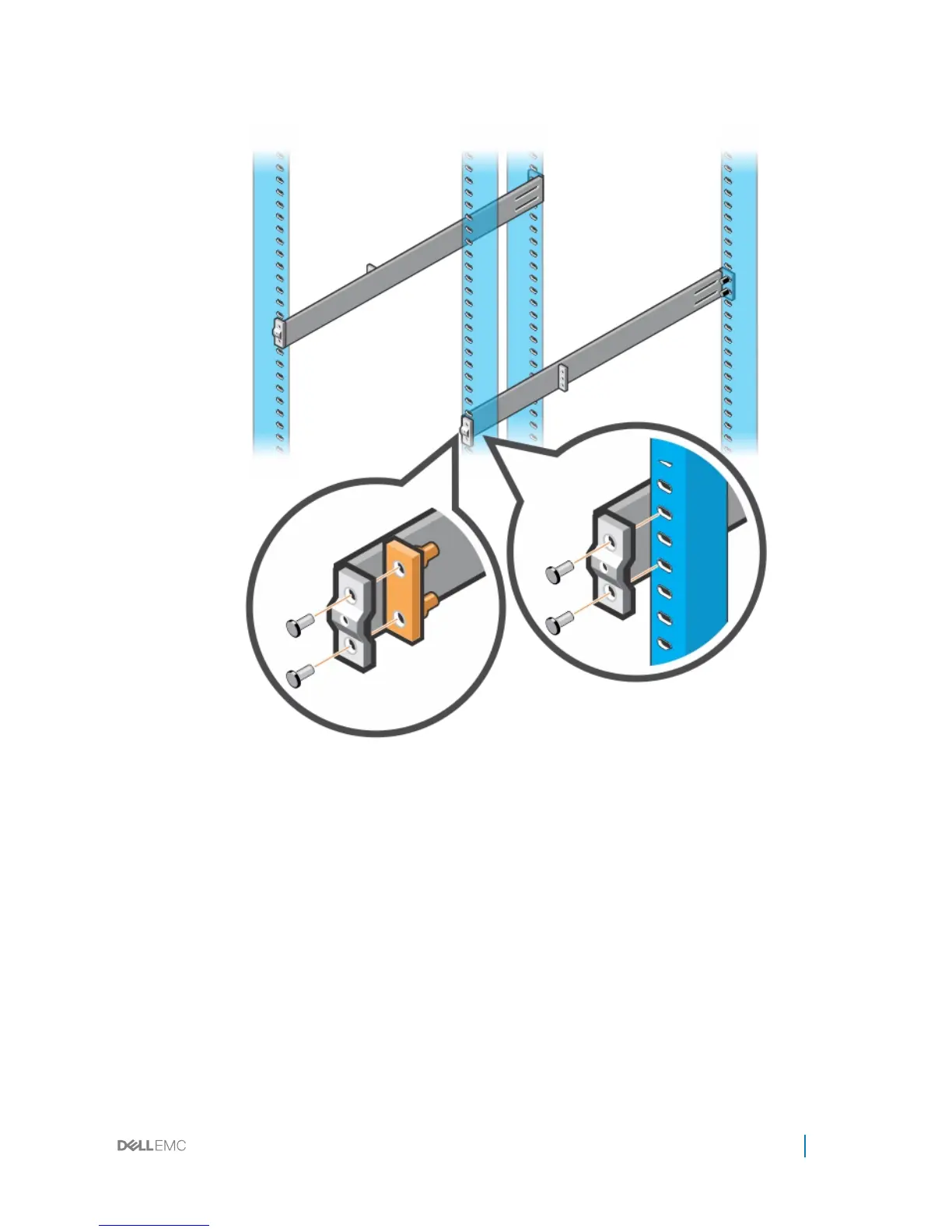

Figure 6. Four-post threaded installation
2 For each rail, attach the front and back anges to the post anges with two user-
supplied screws at each end.
S5048F-ON switch installation
For the 1U two-post congurations, slide the switch into the rails in the same manner as the
four-post congurations.
S5048F-ON switch installation
19
