Two-post center-mount installation
NOTE: For more installation instructions, see the installation labels attached to the
rail assembly.
1 Slide the plunger bracket rearward until it clicks into place and secure the bracket to the
front post ange with two user-supplied screws, item 1.

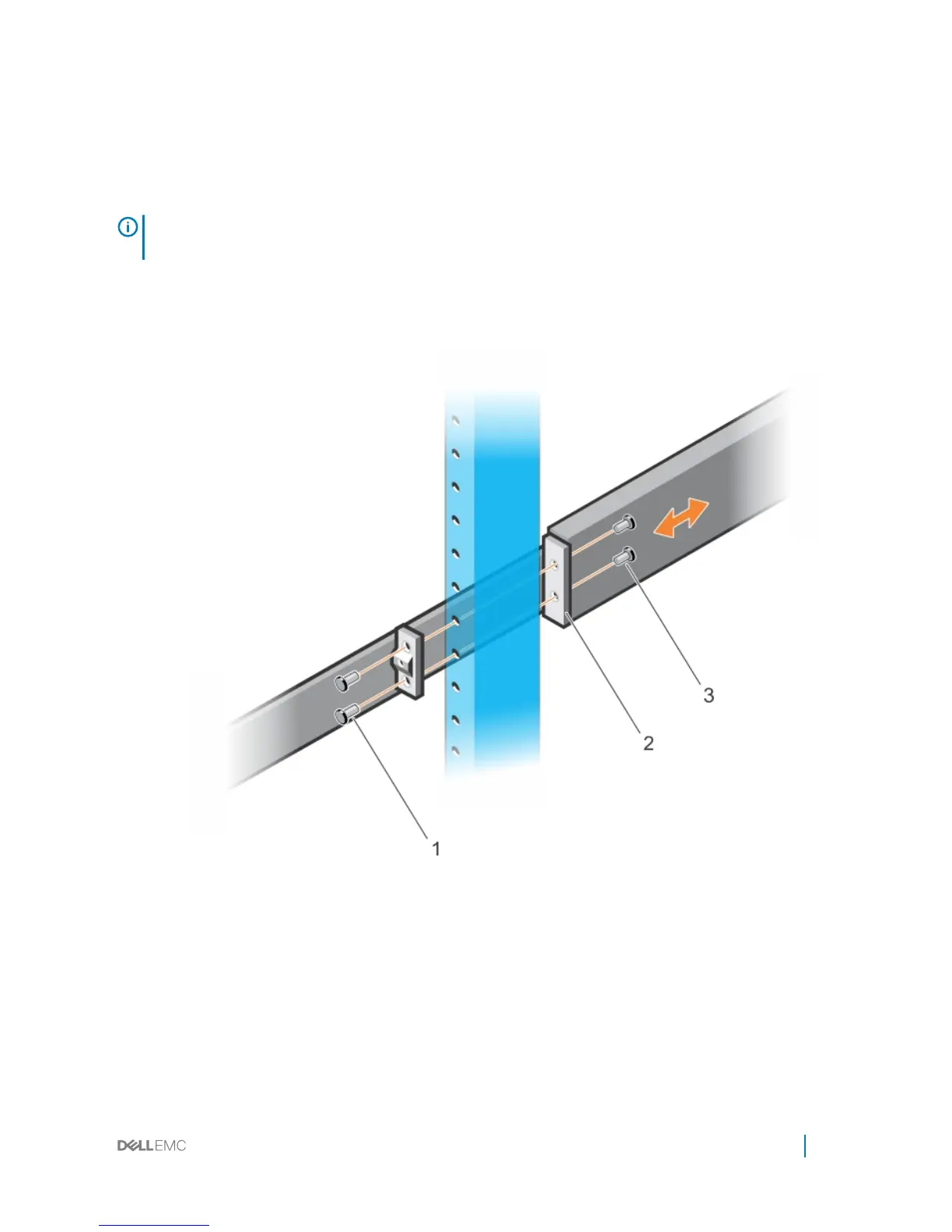

Figure 5. Two-post center-mount installation
2 Slide the back bracket towards the post. Secure it to the post ange with two user-
supplied screws, items 2 and 3.
3 Repeat this procedure for the second rail.
S5048F-ON switch installation
17
