To remove the two screws from each front ange ear on the switch side of the rail and
remove each latch casting, use a Torx screwdriver. Retain the latch castings for future
rack requirements. It is not necessary to remove the back ange castings.

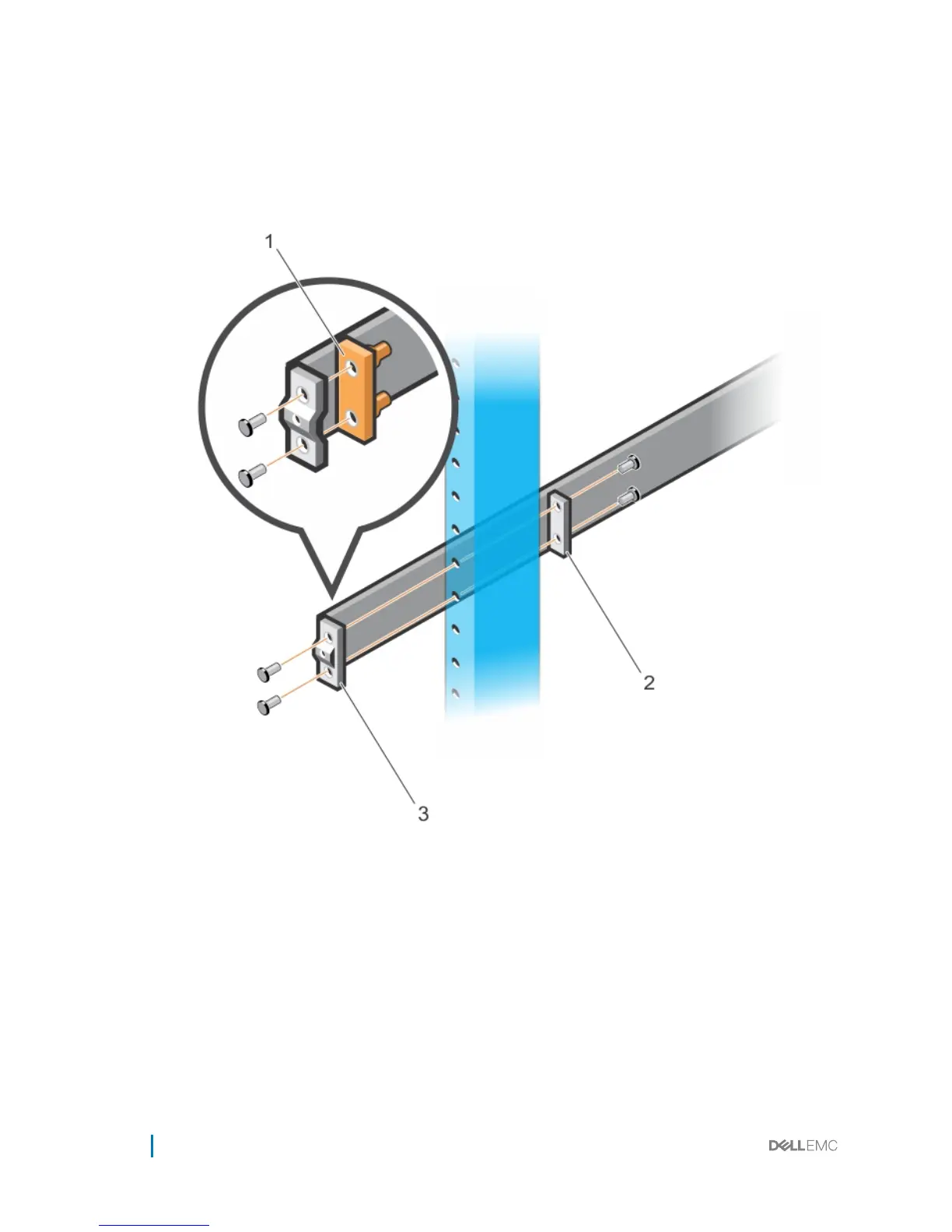

Figure 4. Two-post ush-mount installation
2 Attach one rail to the front post ange with two user-supplied screws, item 2.
3 Slide the plunger bracket forward against the vertical post and secure the plunger
bracket to the post ange with two user-supplied screws, item 3.
4 Repeat this procedure for the second rail.
