Dell S5048F-ON - Two-Post Flush-Mount Installation

The center extractions show how the pegs appear in both the square and nonthreaded
round holes.

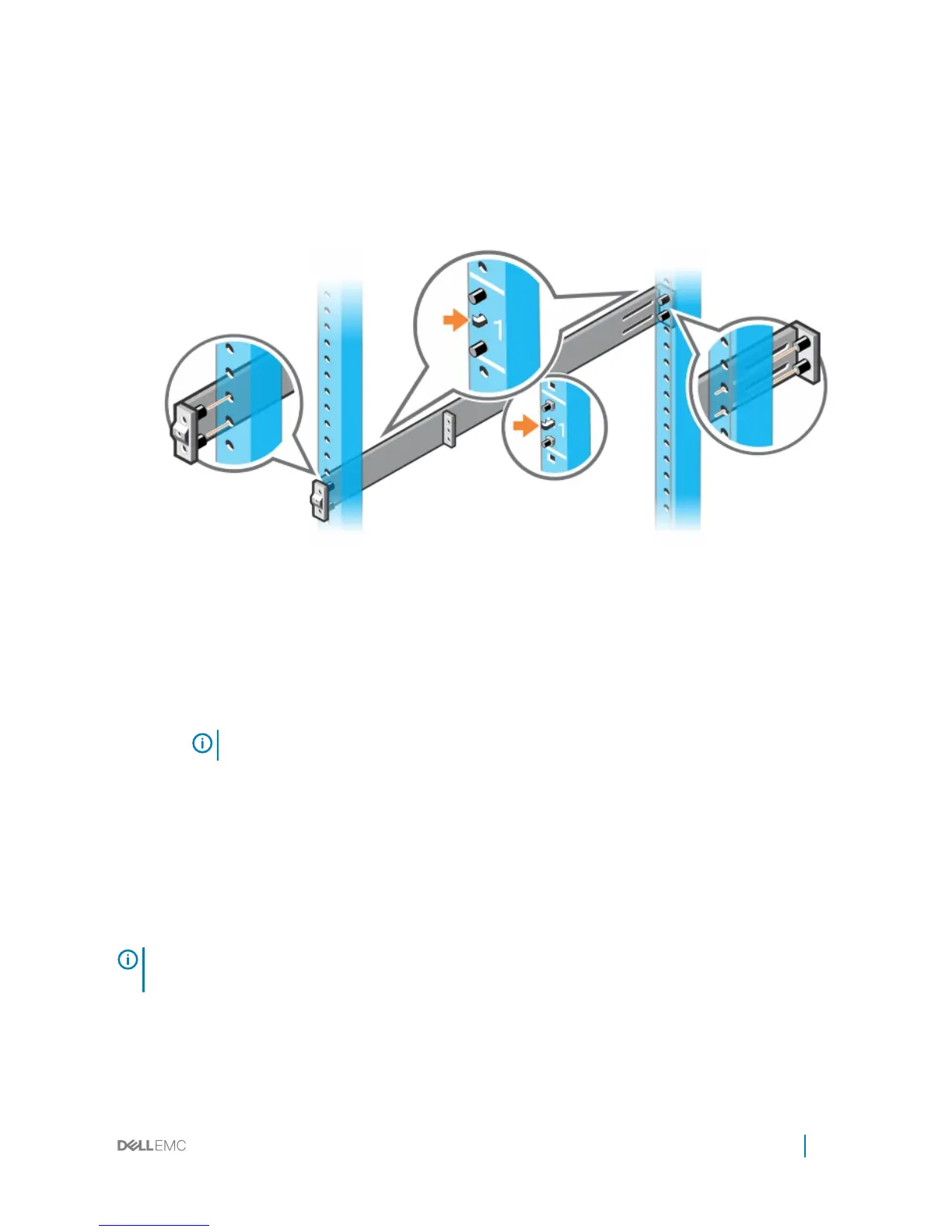

Figure 3. 1U tool-less installation
2 Align and seat the front ange pegs in the holes on the front side of the vertical post.
NOTE
: Be sure that the rails click into place and are secure.
3 Repeat this procedure for the second rail.
4 To remove each rail, pull on the latch release button on each ange ear and unseat each
rail.
Two-post ush-mount installation
NOTE
: For more installation instructions, see the installation labels attached to the
rail assembly.
1 For this conguration, remove the latch castings from the front side of each ReadyRails
assembly, item 1.
S5048F-ON switch installation
15
