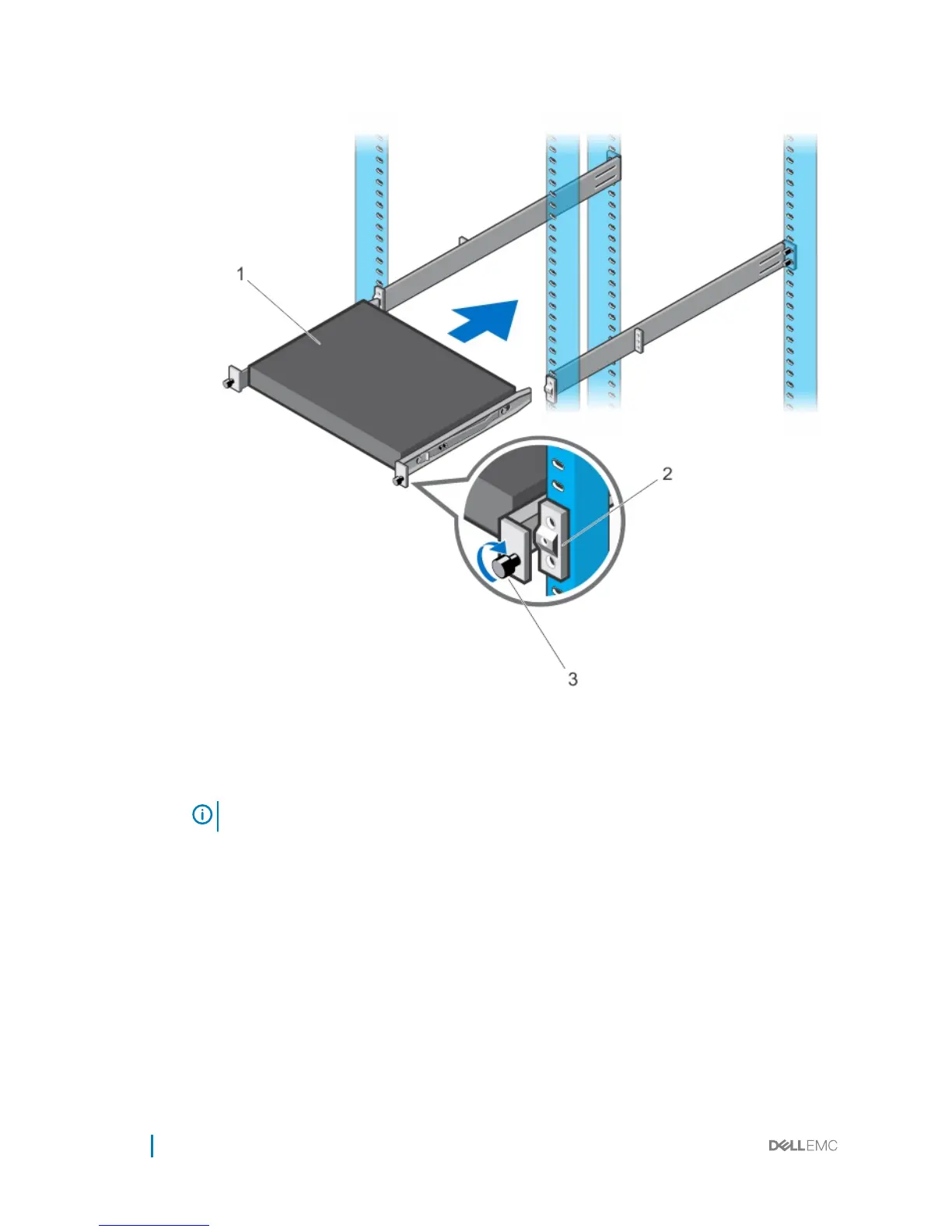

Figure 8. Front rack installation
NOTE
: Do not the use the mounted Ready-Rails as a shelf or a workplace.
3 Tighten the two thumb screws and rack screws.
To remove the chassis from the rack or cabinet, press in the two side-release bars on the
chassis at the same time and slide the chassis forward.
22
S5048F-ON switch installation
