Appendix B: Setup Port Pinouts
The SCS 10101 setup port is an 8-pin modular jack. The setup port pinouts and
descriptions are provided in the following figure and table.

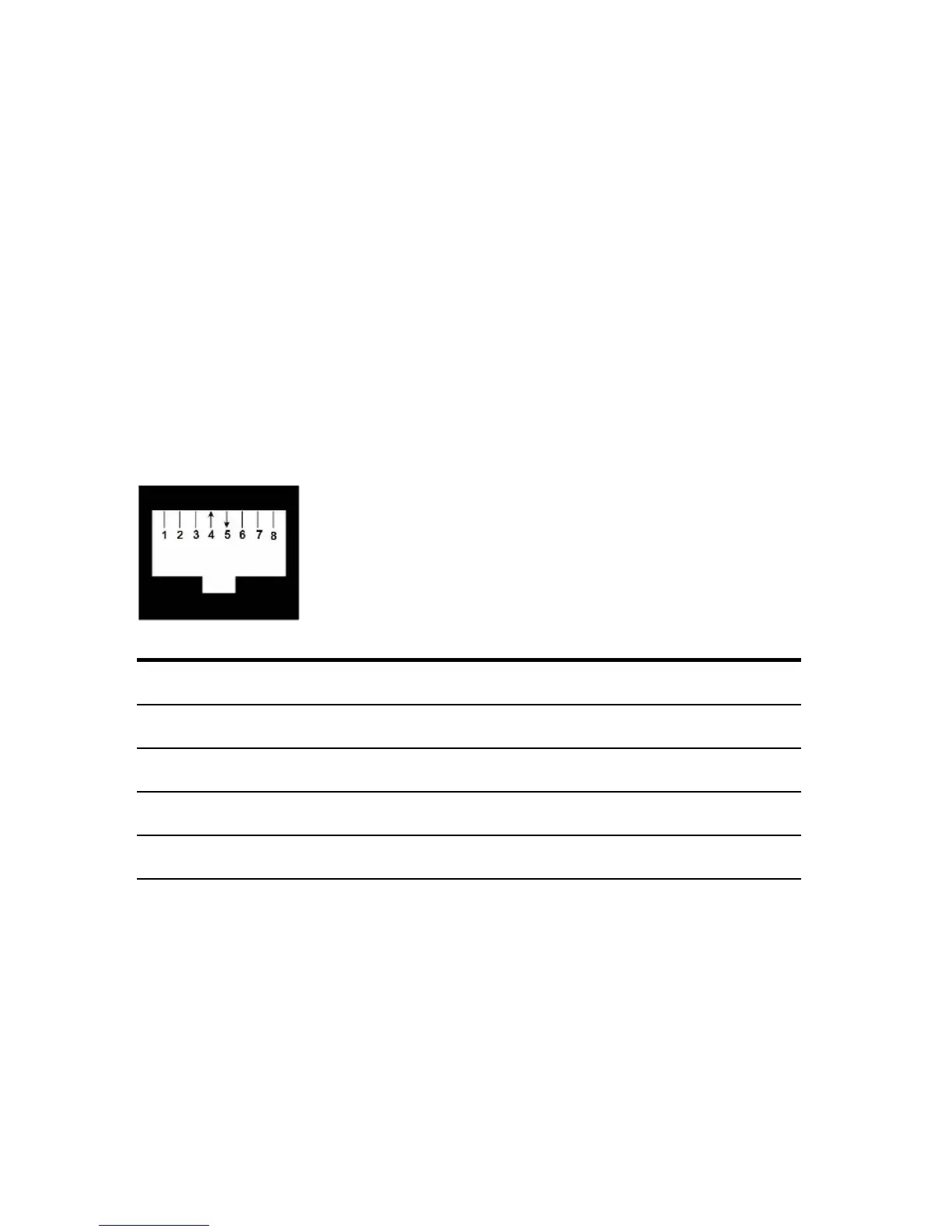

Figure B.1: Setup Port Pinouts
Pin Number Description Pin Number Description
1 No Connection 5 Transmit Data (TXD)
2 No Connection 6 Signal Ground (SG)
3 No Connection 7 No Connection
4 Receive Data (RXD) 8 No Connection
Table B.1: Console/Setup Port Pinout Descriptions
