Dell Server Console Switch - Connecting the SCS Hardware

Installationxxx | xxx23

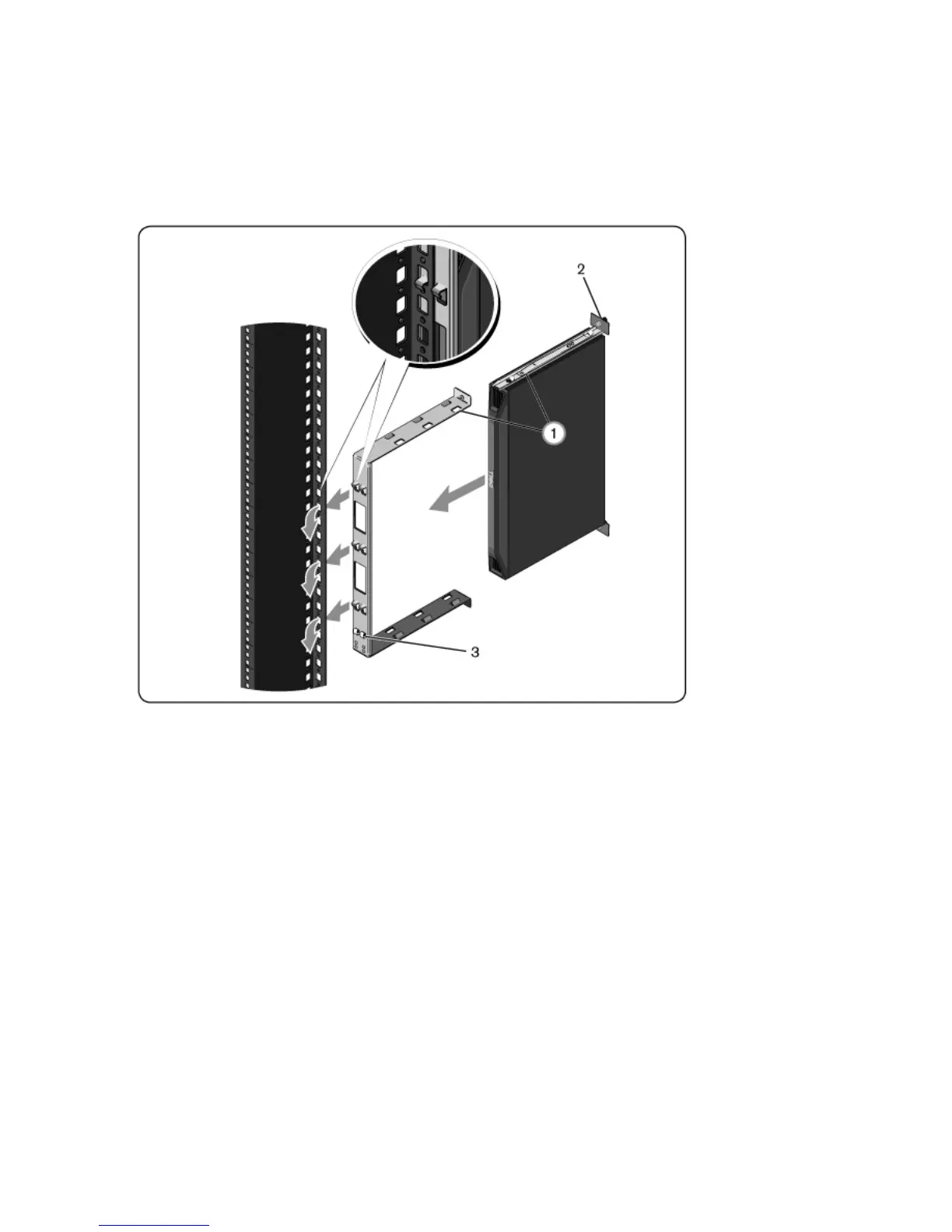

Figure 2.7: 0U Installation
To remove the switch assembly, press the blue button (item 3) to unseat the
bracket and then lift the assembly from the posts.
Connecting the SCS Hardware
Figure 2.8 illustrates an example configuration for the SCS.
