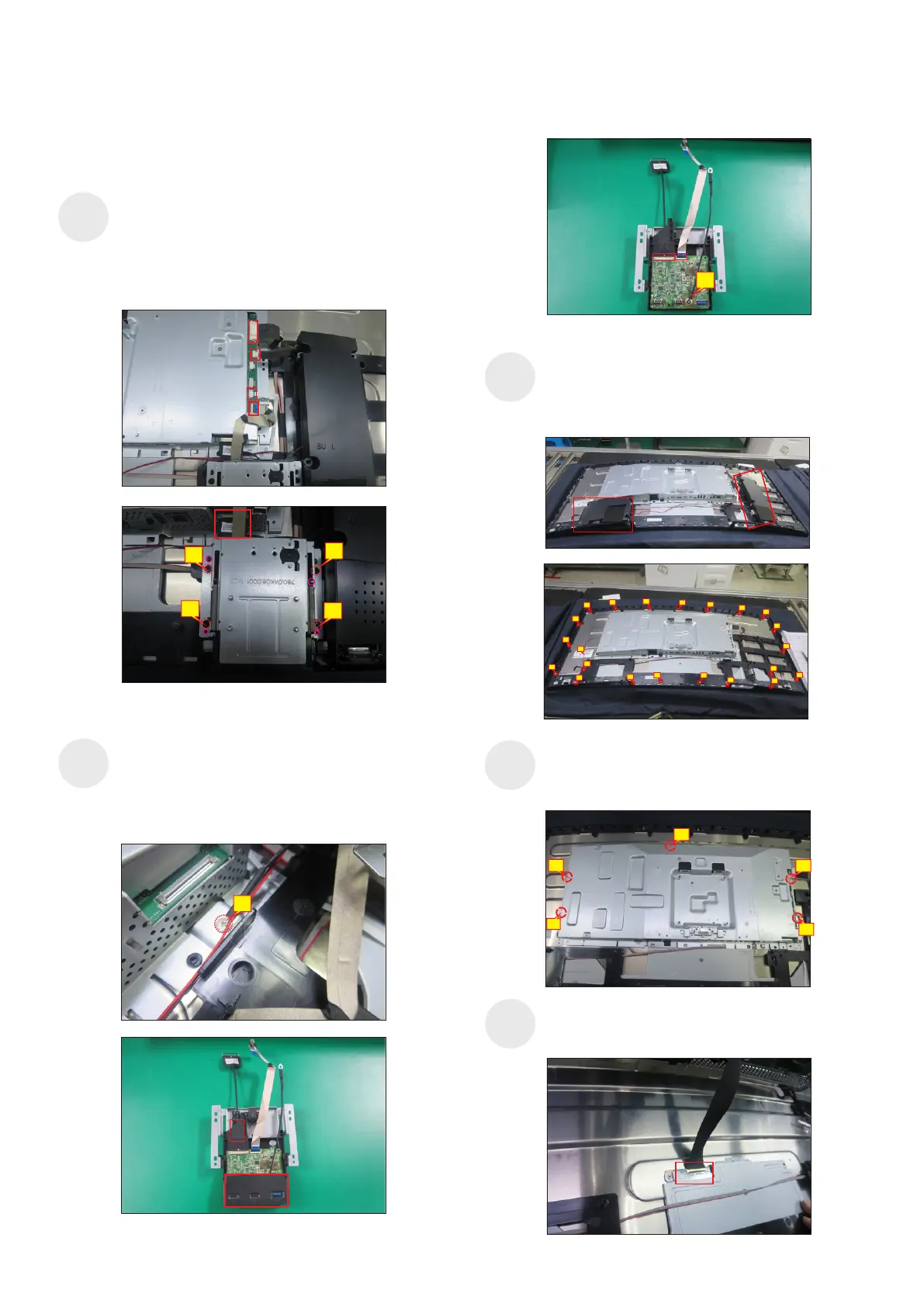

5. Disassembly and Assembly Procedures
S10
S8
S9
S11
Disconnect the lamp cable, speakers’ cable, LED
cable, FFC cable from the connectors of the board.
Use a Philips-head screwdriver to remove 4pcs
screw for unlocking the USB unit, then disconnect
the eDP cable away from board and release the
USB unit from the hooks of the middle frame.
(No.1~4 screw size=M3x4, Torque=4±1kgfxcm)
Use a Philips-head screwdriver to remove 1pcs screw
for releasing the USB unit, then remove the USB
cover, then use a Philips-head screwdriver to remove
1pcs screw for locking the USB board. Disconnect the
USB connective cable.
(No.1~2 screw size=M3x3, Torque=4±1kgfxcm)
Release the two speakers from the probers of the
middle frame and put it aside. Use a Philips-head
screwdriver to remove 21pcs screws for unlocking
the middle frame with the panel module.
(No.1~21 Screw size= M3x0.5x4, Torque=5±0.5kgfxcm)
3
2
1
4
FFC cable
LED cable
speaker cable
lamp cable
1
2
1
2
6
8
12
10
11
3
7
4
8
21
20
14
5
9
13
15
16
17
18
19
Tear off 3pcs aluminum foil, then use a Philips-head
screwdriver to remove 4pcs screws for locking the
bracket chassis module with the panel.
(No.1~4 Screw size= M3x4, Torque=5±1kgfxcm)
Lift up the bracket chassis, and disconnect the eDP
cable from the connector of panel module, then put
the bracket chassis on a protective cushion.
S12
4
2
5
3
1
