Dell Vostro 3401 - Reconnecting the Battery

About this task
Steps

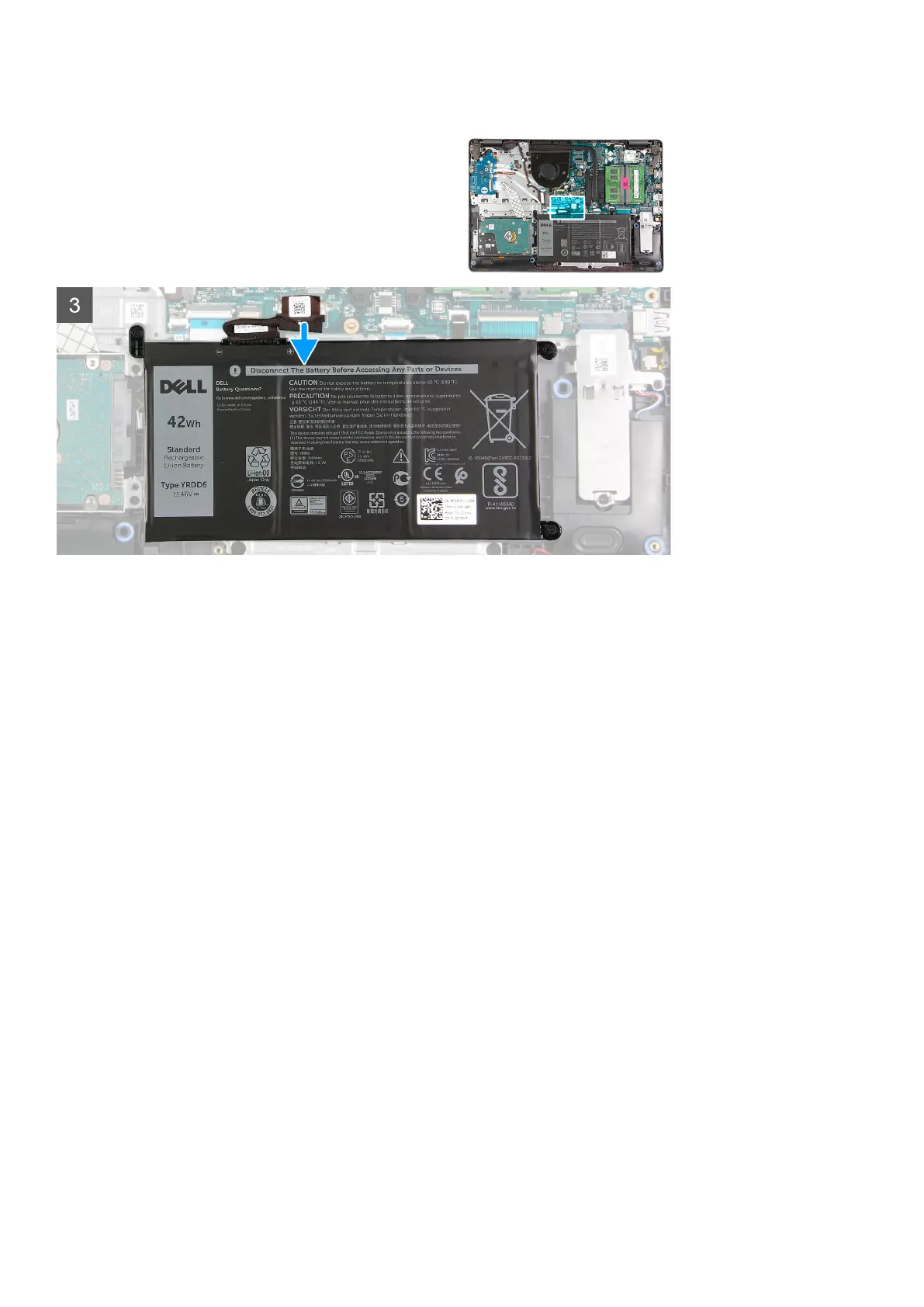

1. Peel back the tape covering the battery connector.
2. Disconnect the battery cable from the connector on the system board.
Reconnecting the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Disassembly and reassembly
25
