About this task
Steps

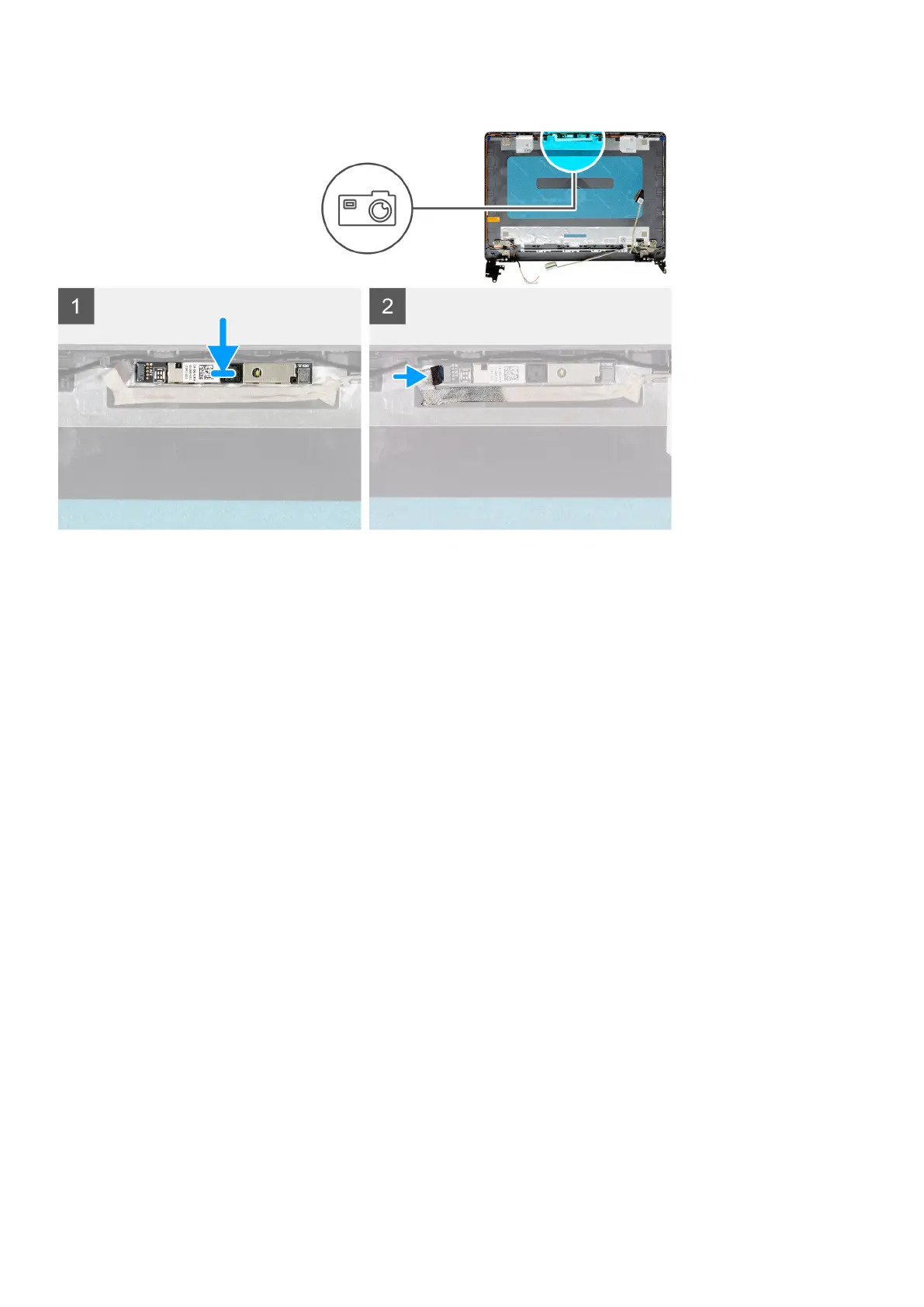

1. Using the alignment post, adhere the camera module on the display back-cover and antenna assembly.
2. Connect the camera cable to the camera module.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the WLAN.
5. Connect the battery cable.
6. Install the base cover.
7. Install the SD card.
8. Follow the procedure in after working inside your computer.
Display panel
Removing the display panel
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the WLAN.
6. Remove the display assembly.
7. Remove the display bezel.
