About this task
Steps

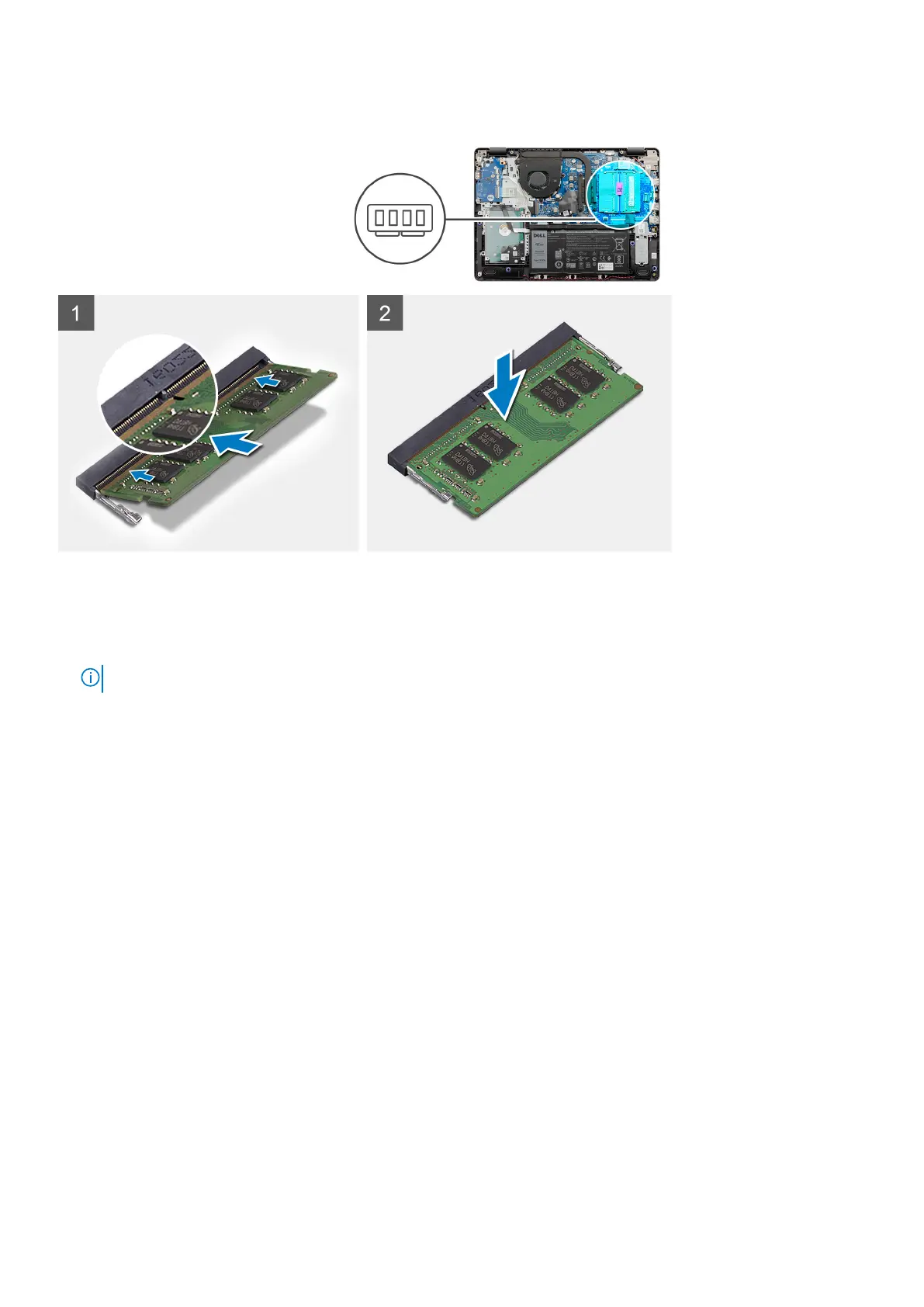

1. Align the notch on the memory module with the tab on the memory module slot and slide the memory module firmly into the
slot at an angle.
2. Press the memory module down until the clips secure it.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Next steps
1. Connect the battery cable.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in after working inside your computer.
WLAN card
Removing the WLAN card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Disconnect the battery cable.
30
Disassembly and reassembly
