Dell Vostro 3401 - Palm-rest and keyboard assembly

About this task
Steps

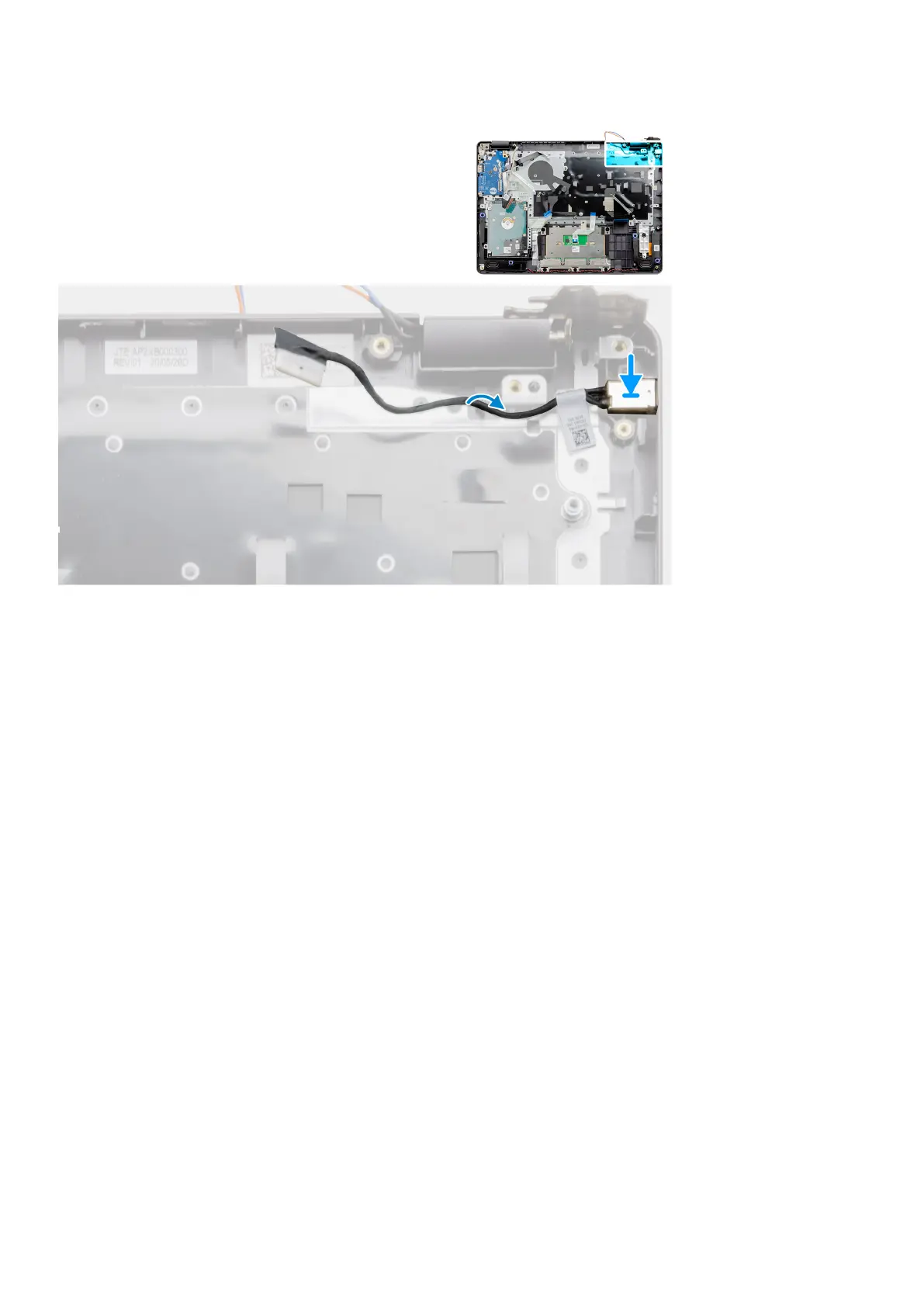

Place the power adapter port module into the slot provided on the palmrest.
Next steps
1. Install the system board.
2. Install the display assembly.
3. Install the system fan.
4. Install the SSD.
5. Install the WLAN.
6. Connect the battery cable.
7. Install the base cover.
8. Install the SD card.
9. Follow the procedure in after working inside your computer.
Palm-rest and keyboard assembly
Removing the palmrest and keyboard assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the WLAN.
6. Remove the memory
7. Remove the display assembly.
8. Remove the SSD.
