Dell Vostro 3401 - Installing the Heatsink

About this task
Steps

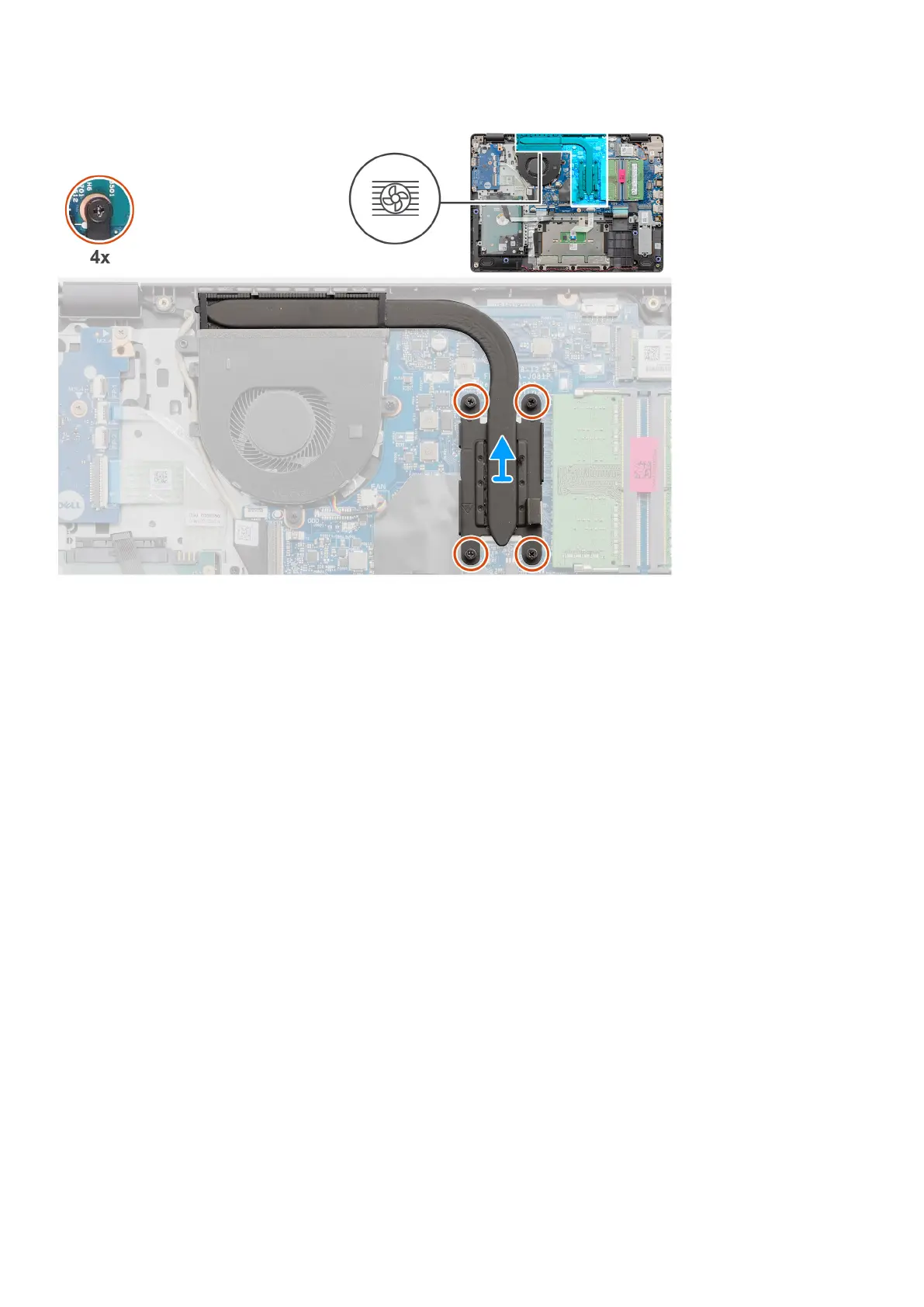

1. Loosen the four captive screws that secure the heatsink to the system board.
2. Lift the heatsink off the system board.
Installing the heatsink
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Disassembly and reassembly
43
