3. Re-route the display cable and WLAN antenna cables through the routing channels on the palmrest.
4. Reconnect the display cable to the connector on the system board.
Next steps
1. Install the WLAN.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in after working inside your computer.
Display bezel
Removing the display bezel
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery cable.
5. Remove the display assembly.
About this task
Steps

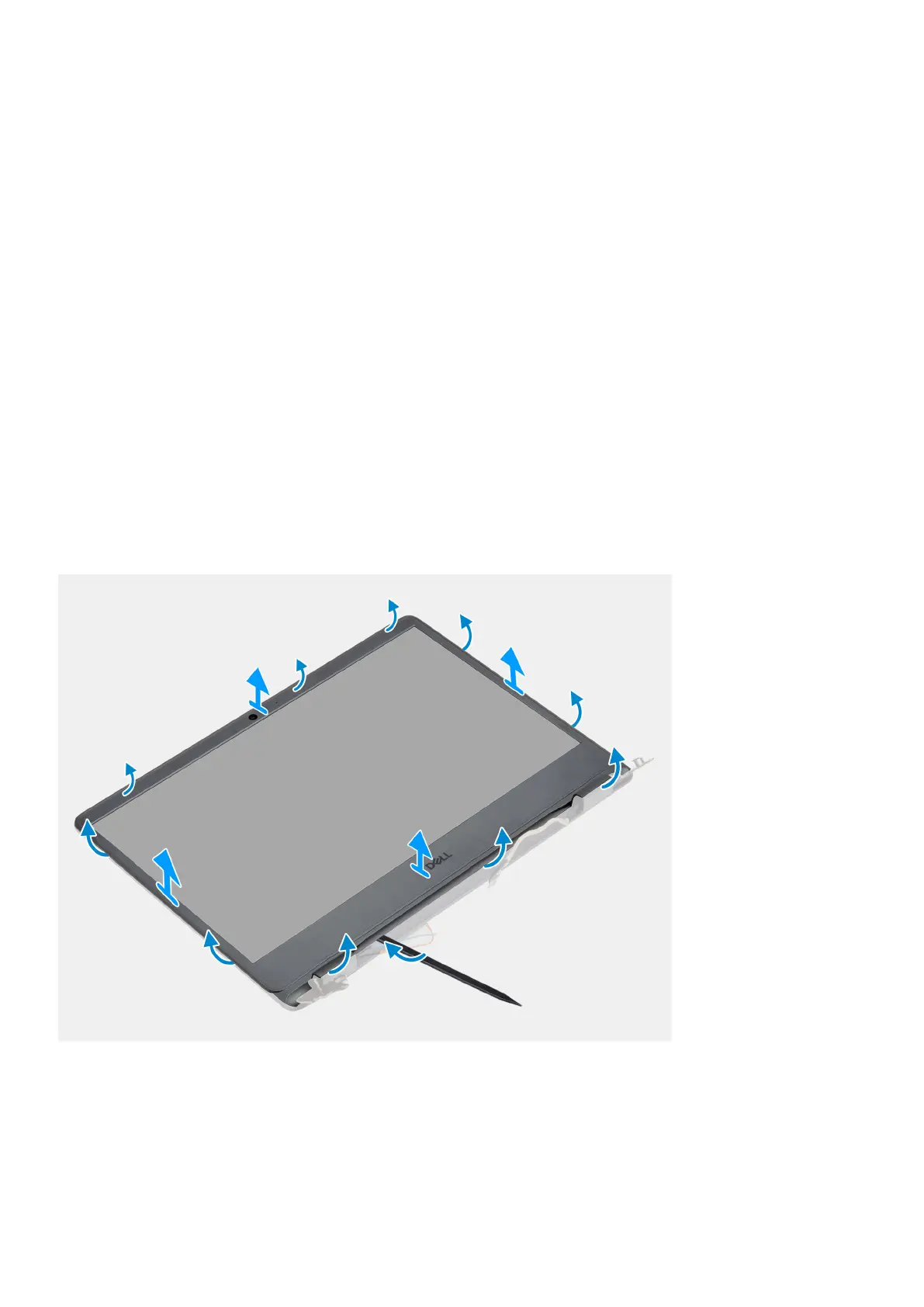

1. Pry open the display bezel from the inner edge at the left and right sides of the display assembly.
Disassembly and reassembly
55
