Installing the display back-cover
About this task

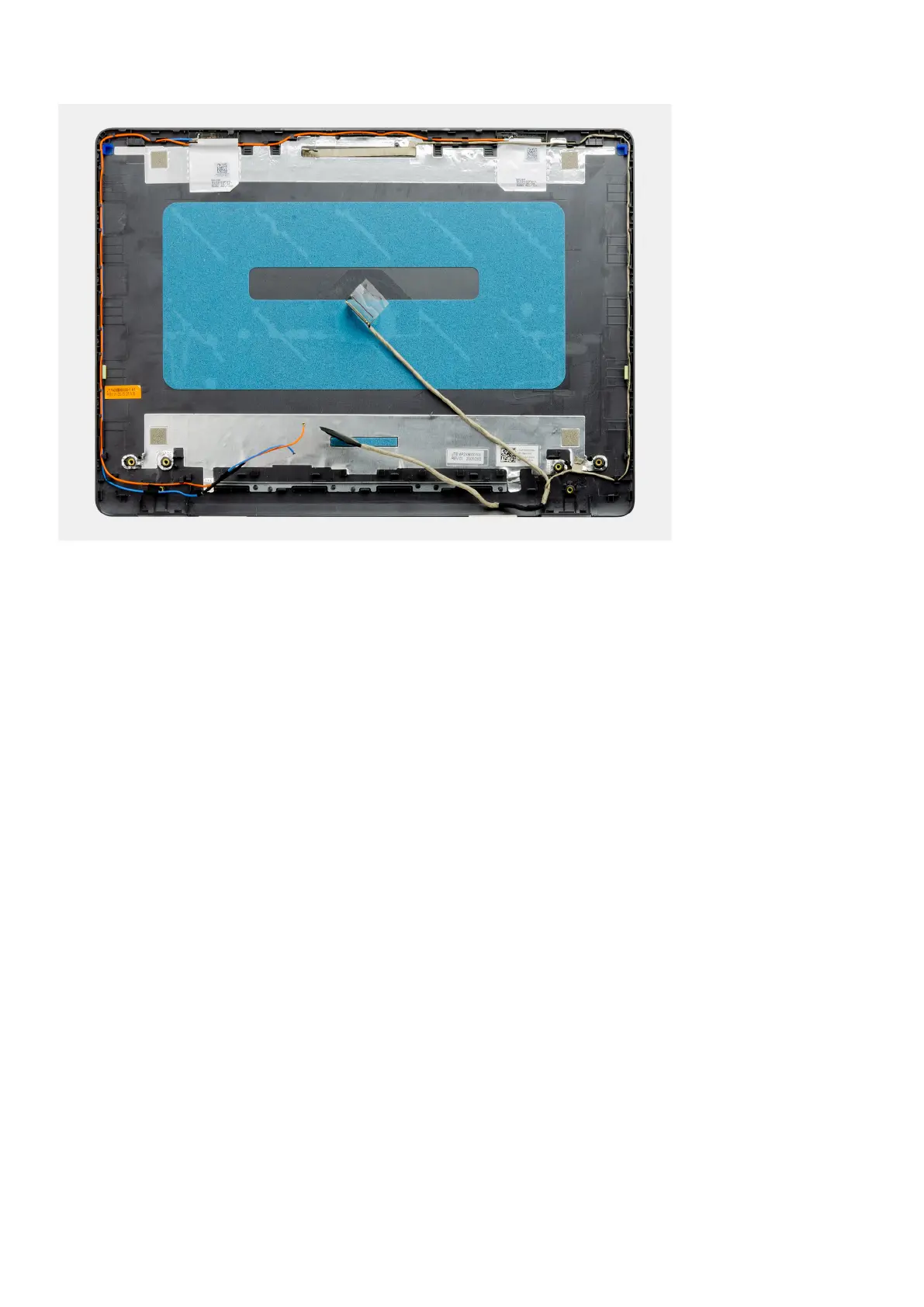

Place the display back-cover on a clean and flat surface.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the display assembly.
4. Install the WLAN.
5. Connect the battery cable.
6. Install the base cover.
7. Install the SD card.
8. Follow the procedure in after working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Disconnect the battery cable.
5. Remove the IO board.
Disassembly and reassembly
73
