Dell Vostro 3401 - Solid-state drive

About this task
Steps

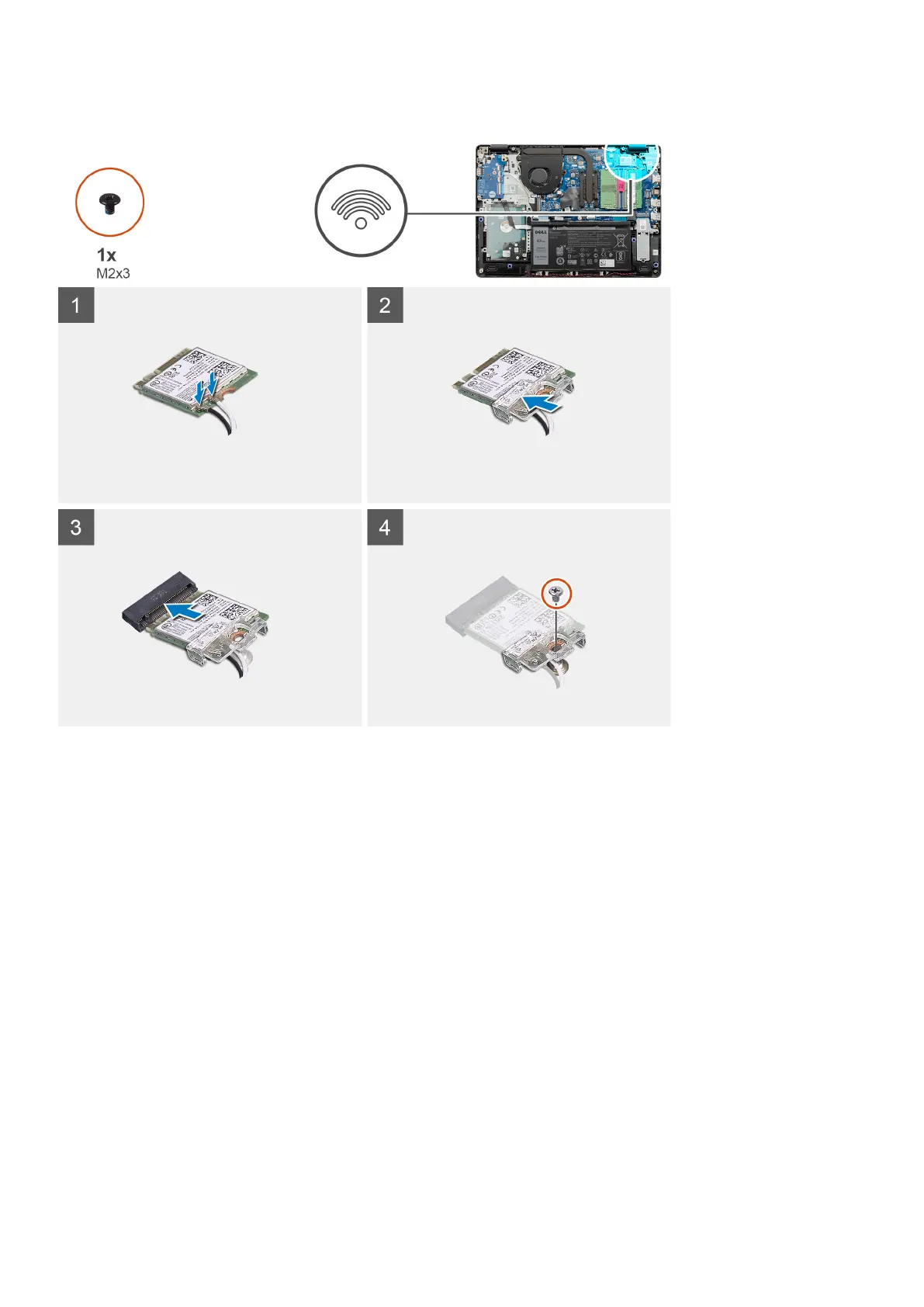

1. Replace the WLAN card into the M.2 Slot on the system board.
2. Connect the WLAN antenna cables to the connectors on the WLAN card.
3. Place the WLAN card bracket to secure the WLAN antenna cables to the WLAN card.
4. Replace the single (M2x3) screw to secure the WLAN bracket and the WLAN card to the palmrest.
Next steps
1. Connect the battery cable.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in after working inside your computer.
Solid-state drive
Removing the M.2 2230 Solid-state drive
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
32
Disassembly and reassembly
