About this task
Steps

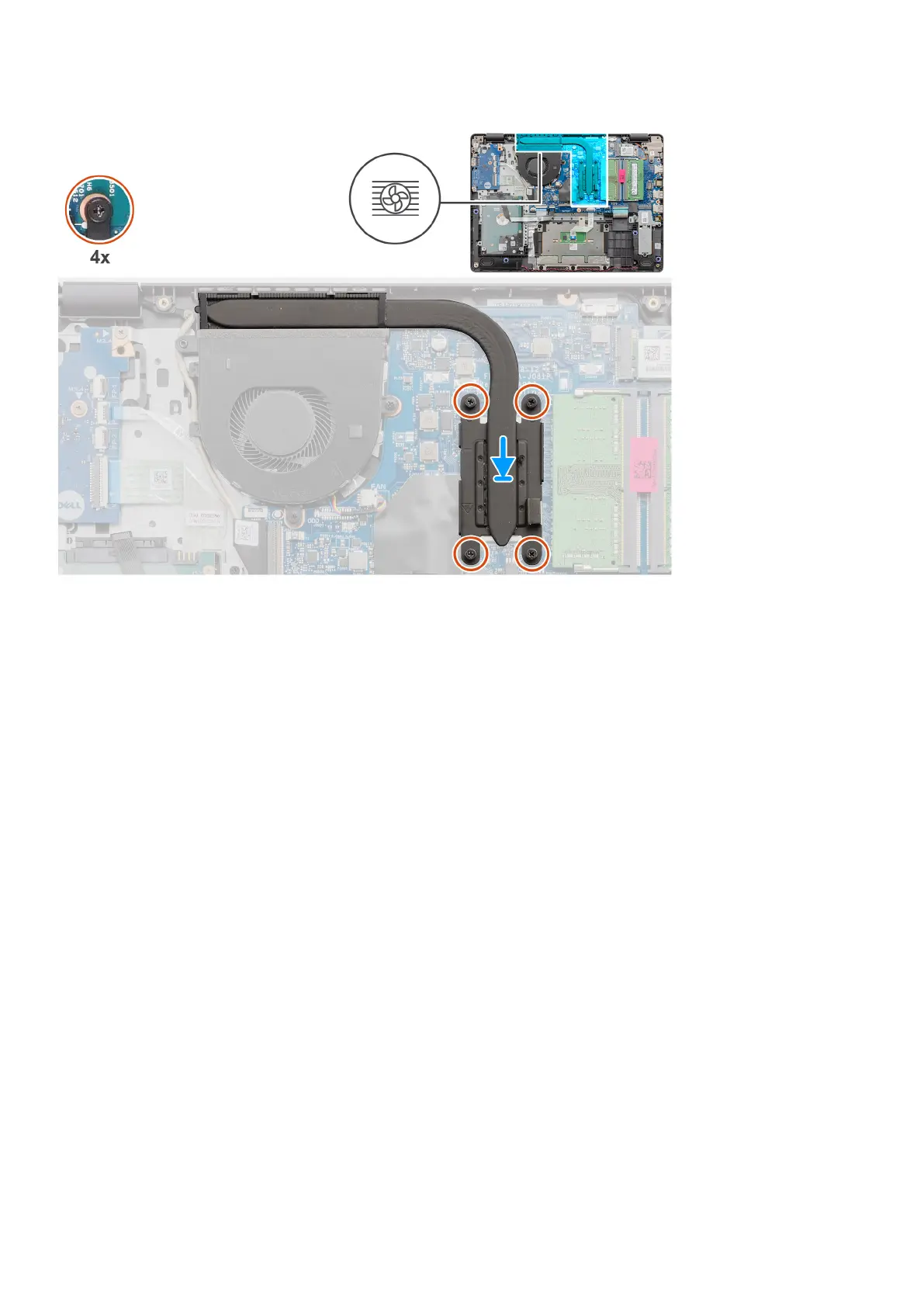

1. Place the heatsink on the system board and align the captive screws on the heatsink with the screw holes on the system
board.
2. Tiighten the four captive screws to secure the heatsink to the system board.
Next steps
1. Reconnect the battery cable.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in after working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Disconnect the battery cable.
5. Remove the SSD.
44
Disassembly and reassembly
