About this task
Steps

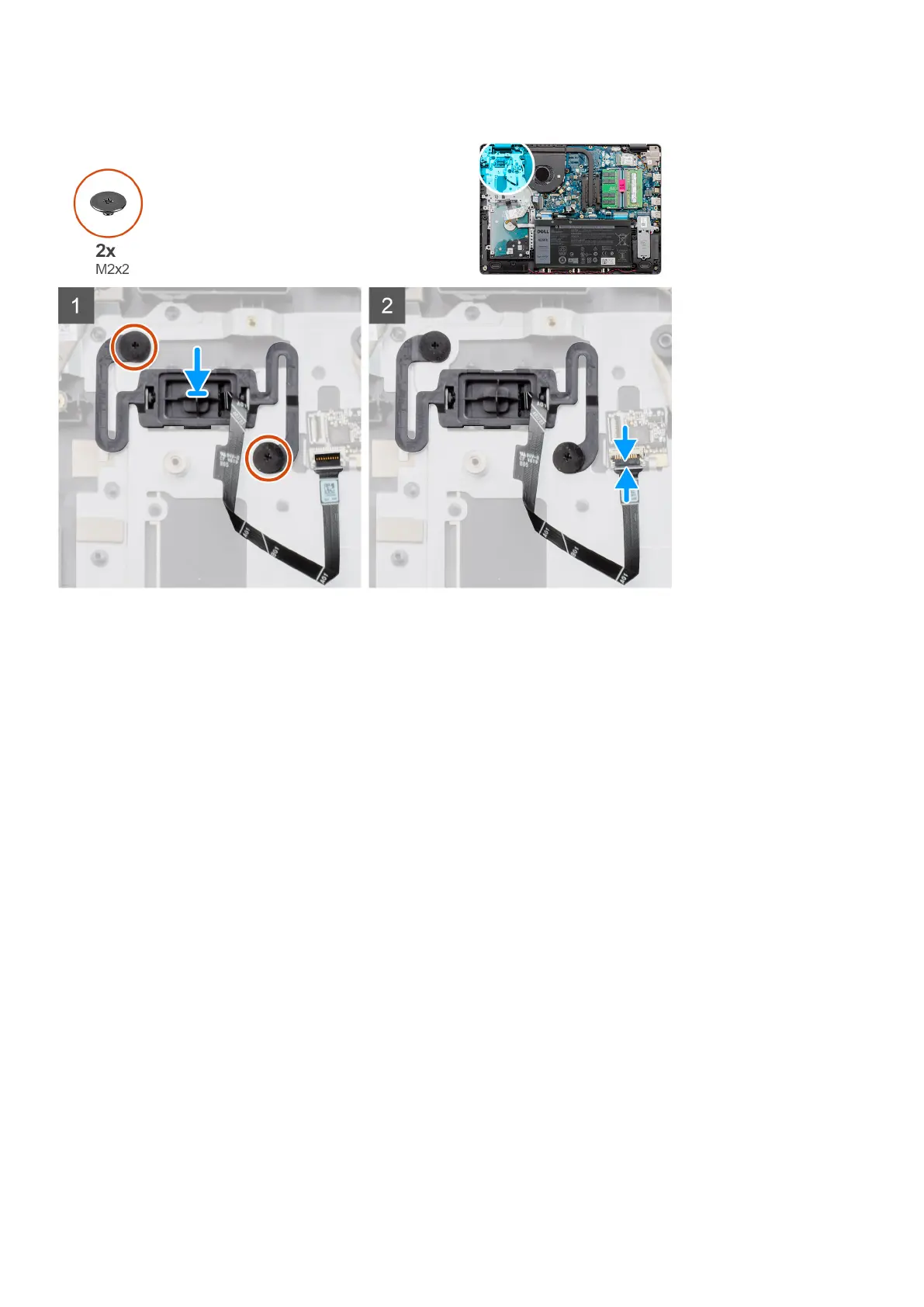

1. Place the power-button board into the slot on the palmrest.
2. Install the two (M2x2) screws to secure the power button to the palmrest.
3. Connect the power button cable to the connector on the system board.
Next steps
1. Install the IO board.
2. Connect the battery cable.
3. Install the base cover.
4. Install the SD card.
5. Follow the procedure in after working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the WLAN.
6. Remove the SSD.
7. Remove the memory.
8. Remove the system fan.
9. Remove the heatsink.
Disassembly and reassembly
