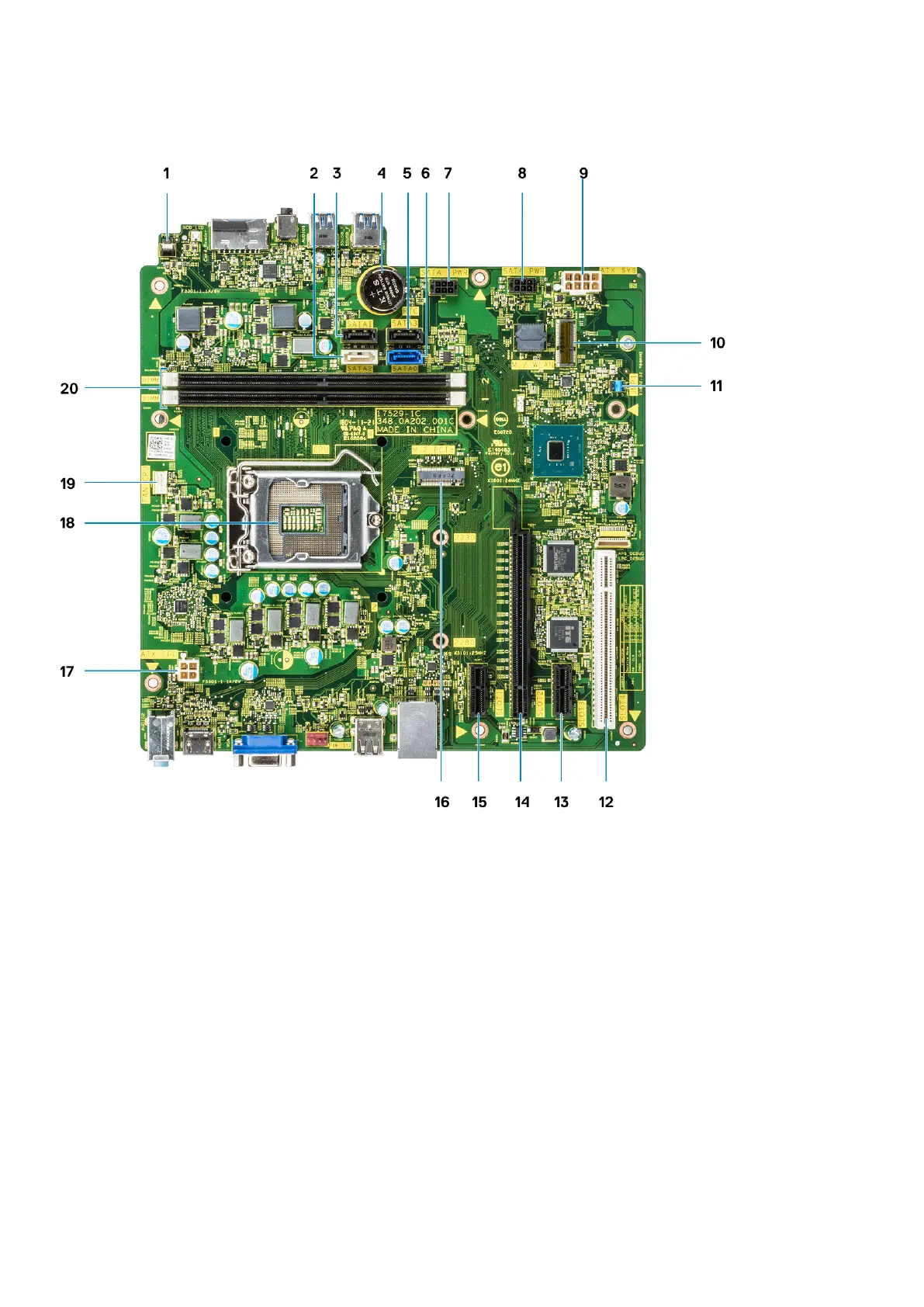

System board layout
1.
Power switch connector
2. SATA 2 Connector (white color)
3. SATA 1 Connector (black color)
4. Coin-cell battery Connector
5. SATA 3 Connector (black color)
6. SATA 0 Connector (Blue color)
7. HDD_ODD_PowerCable Connector (SATA_PWR)
8. HDD_ODD_PowerCable Connector (SATA_PWR)
9. ATX Power Connector (ATX_SYS)
10. M.2 WLAN Connector
11. Service mode/password clear/CMOS clear jumpers
12. PCI Connector ( SLOT4)
13. PCI-e X1 Connector (SLOT3)
14. PCI-e X16 Connector (SLOT2)
15. PCI-e X1 Connector (SLOT1)
16. M.2 PCIe Connector
17. CPU Power Connector (ATX_CPU)
18. Processor Socket (CPU)
Removing and installing components
11
