Dell Vostro 3671 - Removing and Installing the 2.5-inch Hard Drive

4. Install the:
a) Front bezel
b) Cover
5. Follow the procedure in After working inside your computer.
Removing the 2.5 inches hard drive assembly - optional
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Cover
b) Front bezel
3. To remove the hard drive assembly:

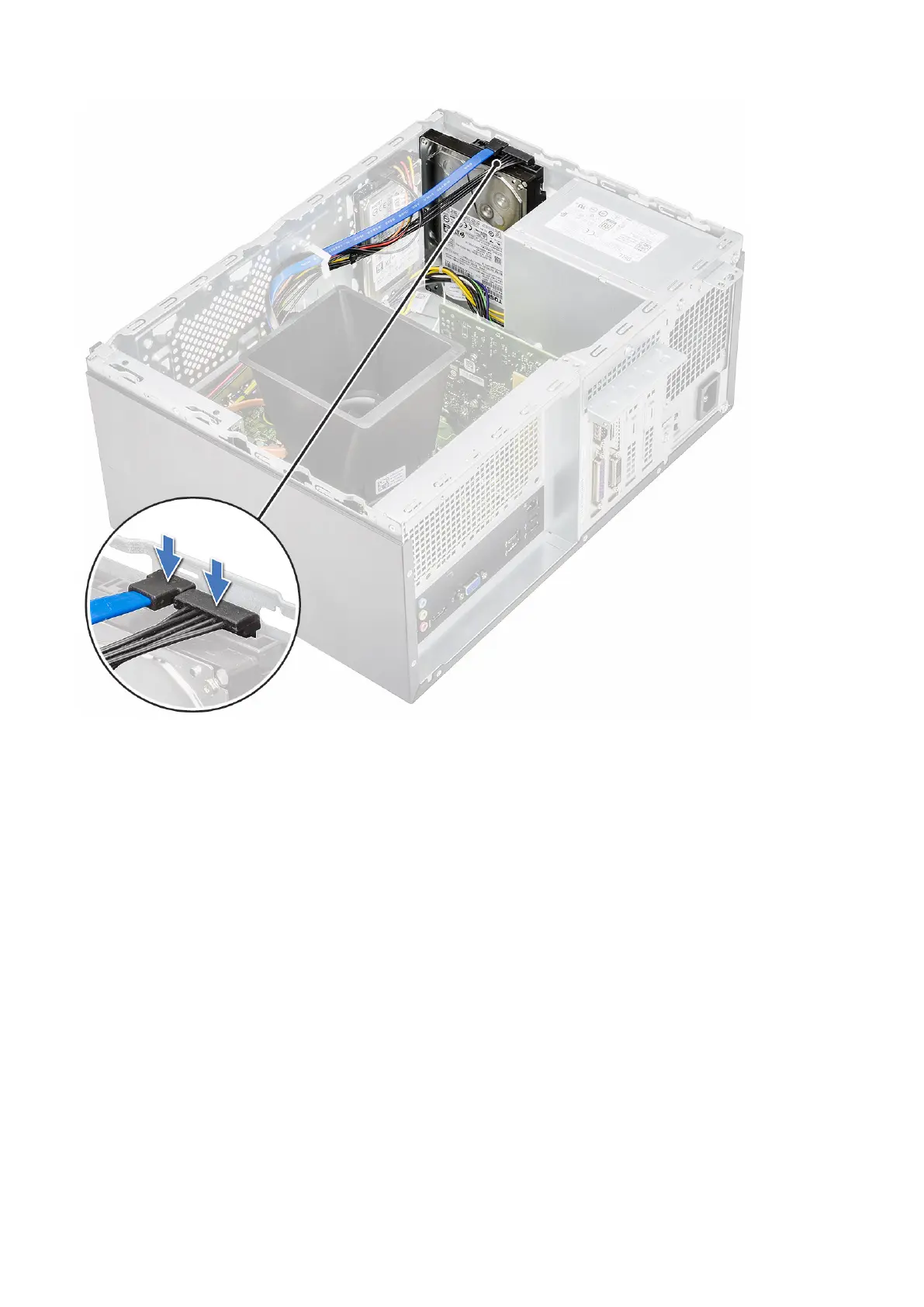

a) Disconnect the hard drive data and power cables from the connectors on the hard drive.
Removing and installing components
25
