Dell Vostro 3671 - Removing and Installing Optional Cards

6. Install the:
a) Cover
7. Follow the procedure in After working inside your computer.
Optional card
Removing the optional card
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Cover
3. To remove the optional card:

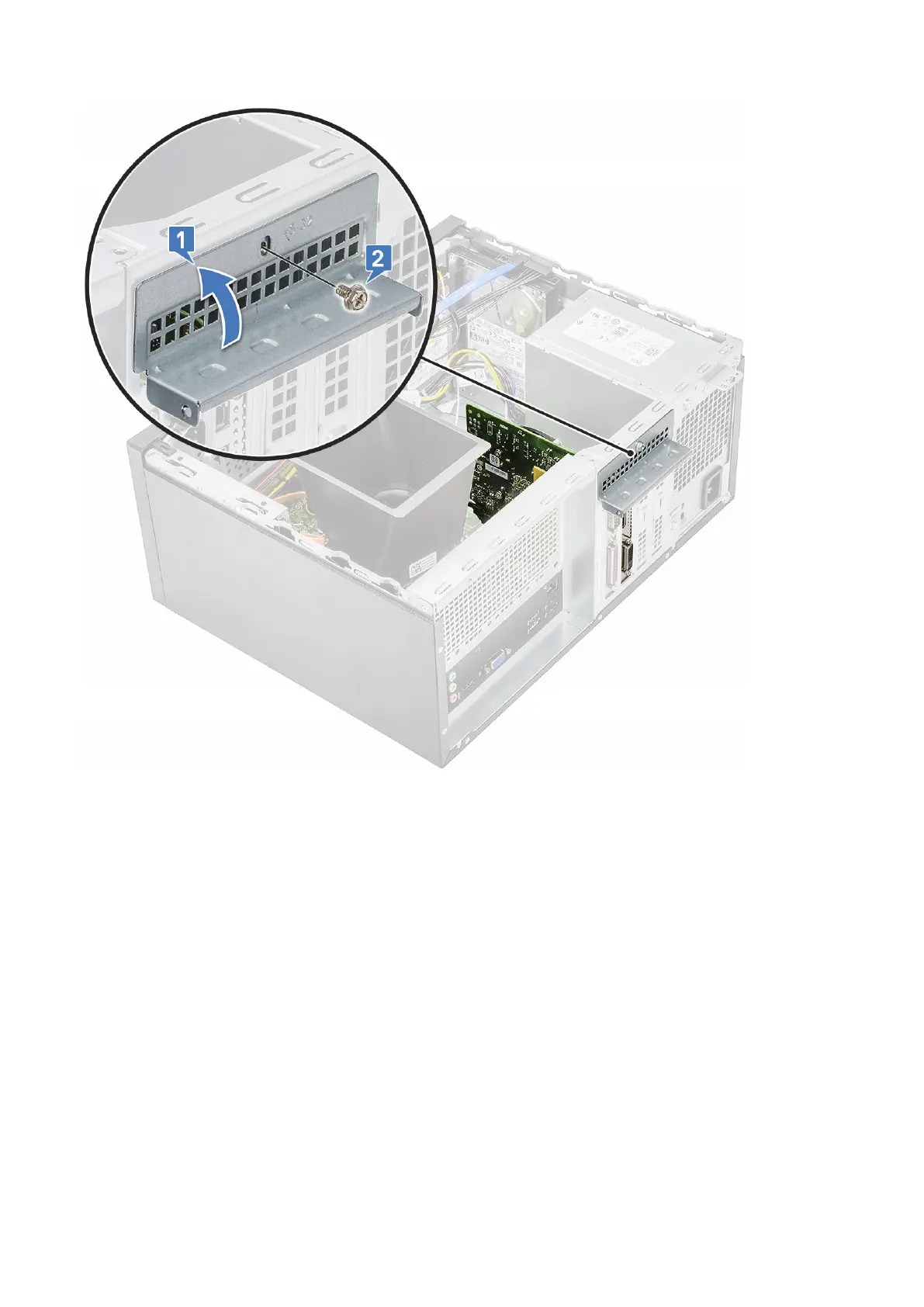

a) Remove the one (6-32x6.35) screw to remove the PCIe bracket [1, 2].
44
Removing and installing components
