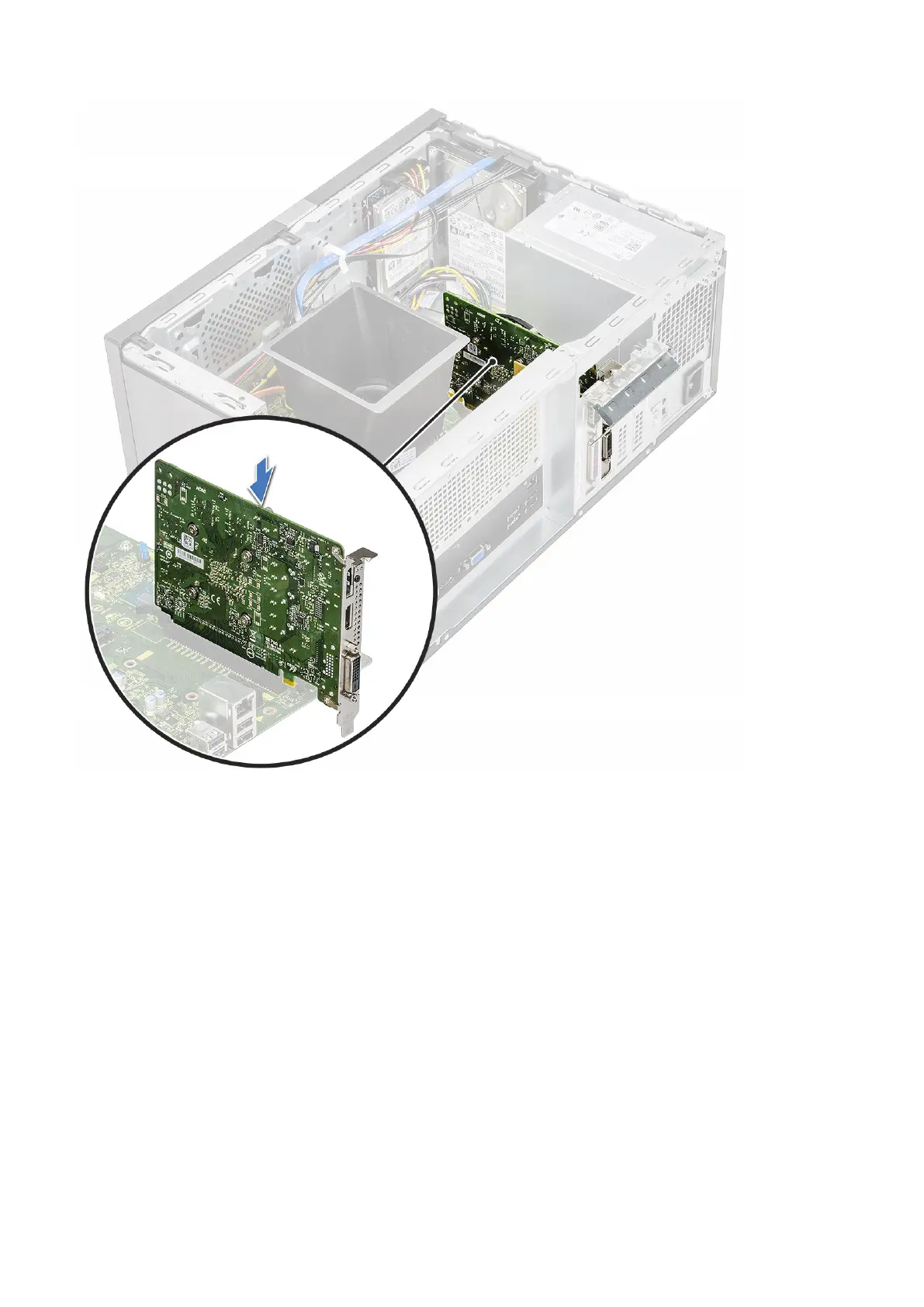

3. Secure the PCIe expansion card by pushing the card retention latch until it clicks into place.
4. Close the PCIe bracket [1].
5. Replace the one (6-32x6.35) screw to fix the PCIe bracket [2].
