Dell Vostro 3671 - Page 50

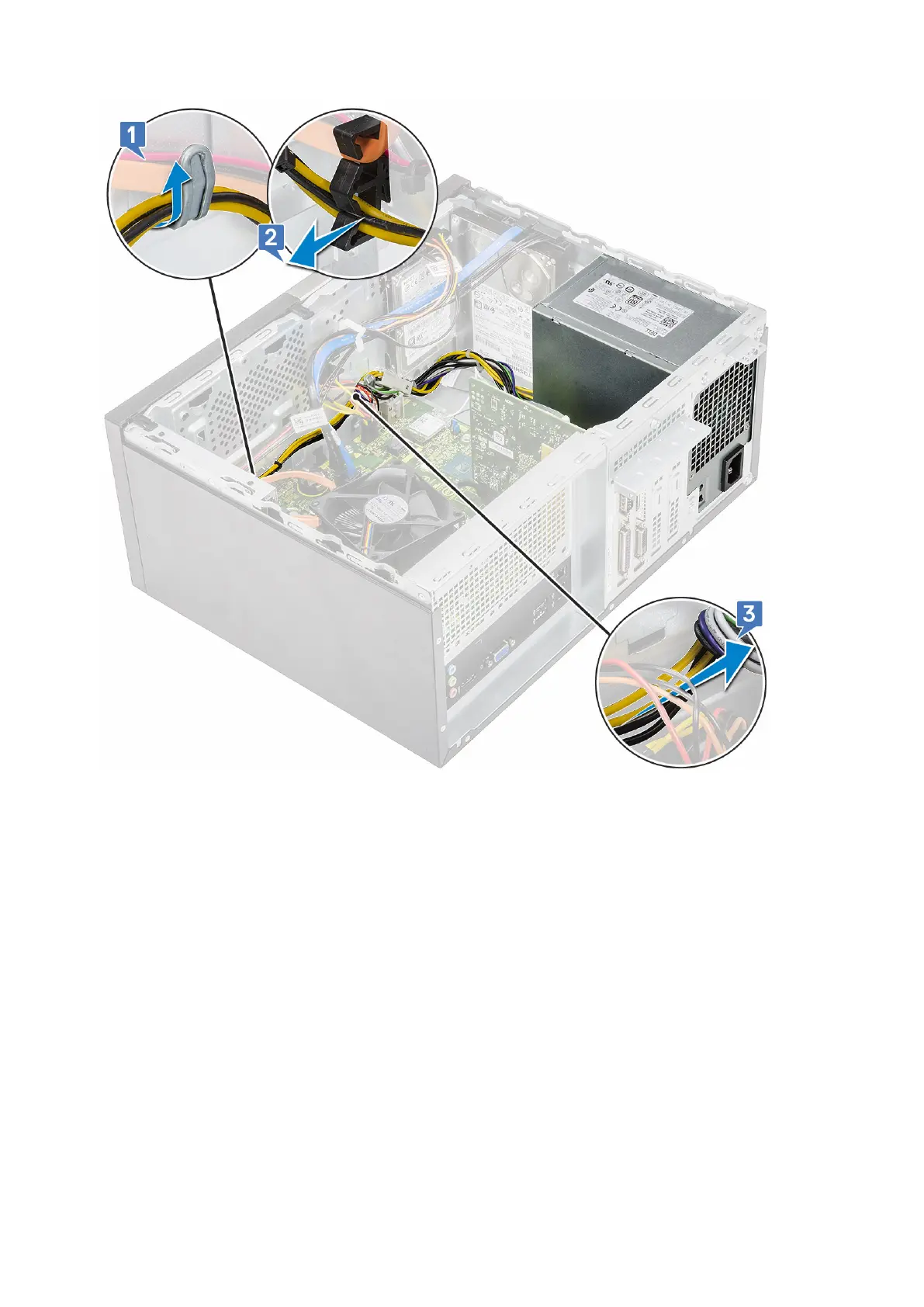

c) Unroute the PSU cable from the metal clip [1], press the tab of the 8-pin power cables and disconnect it from the system board
[2], and then remove 4 (6-32x6.35) screws to release the PSU [3].
50
Removing and installing components
