Steps

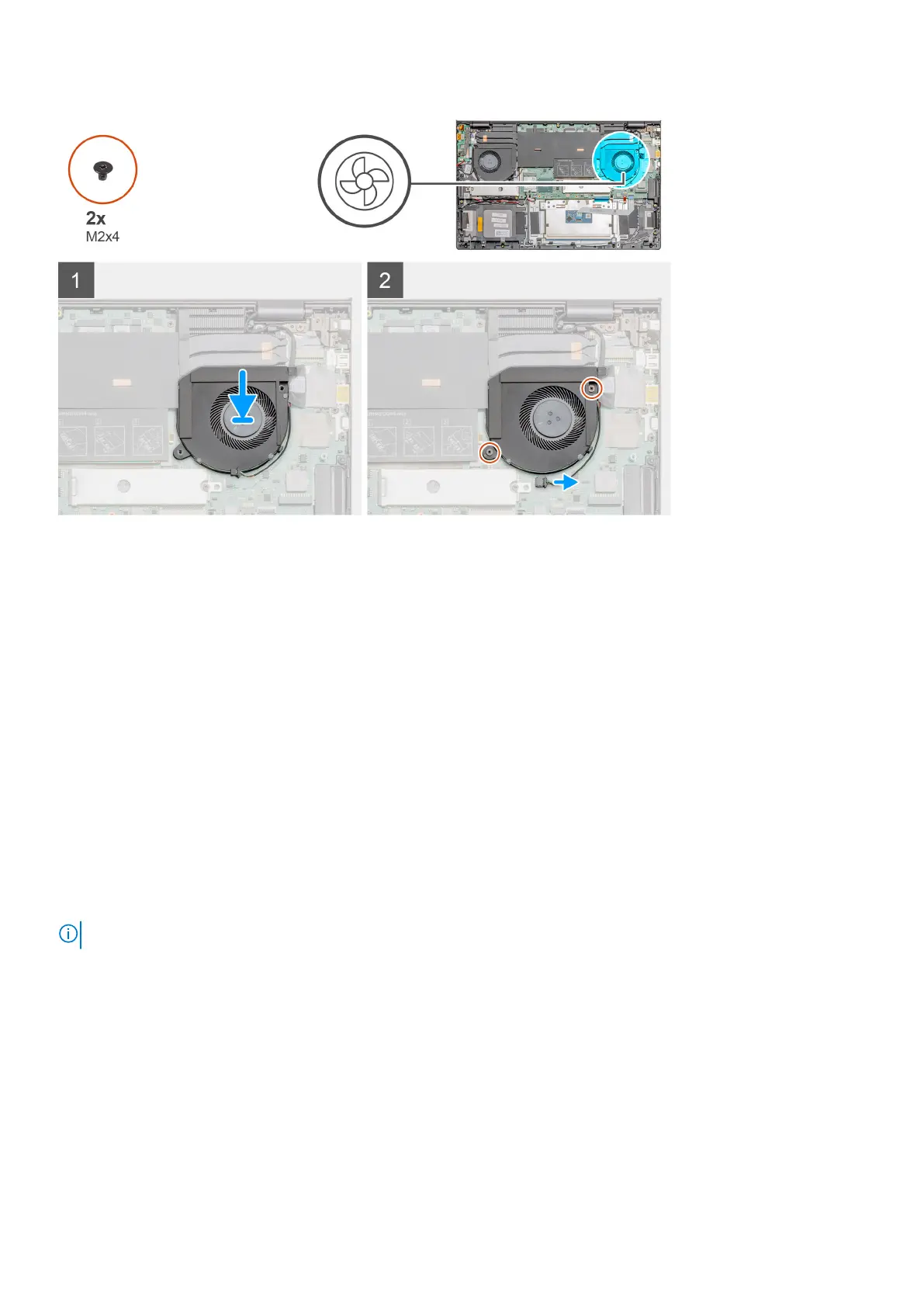

1. Slide and place the system fan on the palm-rest and keyboard assembly.
2. Align the screw holes on the system fan with the screw holes on the palm-rest and keyboard assembly.
3. Replace the two (M2x4) screws to secure the system fan to the palm-rest and keyboard assembly.
4. Connect the system fan cable to the system board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Heat sink
Removing the heat sink - UMA
Prerequisites
NOTE: The heat sink type in your computer varies depending on the configuration ordered.
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The figure indicates the location of the heat sink and provides a visual representation of the removal procedure.
