System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the SSD-1 (M.2 2280 or M.2 2230).
6. Remove the SSD-2 (M.2 2280 or M.2 2230).
7. Remove the GPU fan.
8. Remove the system fan.
9. Remove the heat sink - discrete or UMA based on the configuration selected.
10. Remove the memory module.
About this task

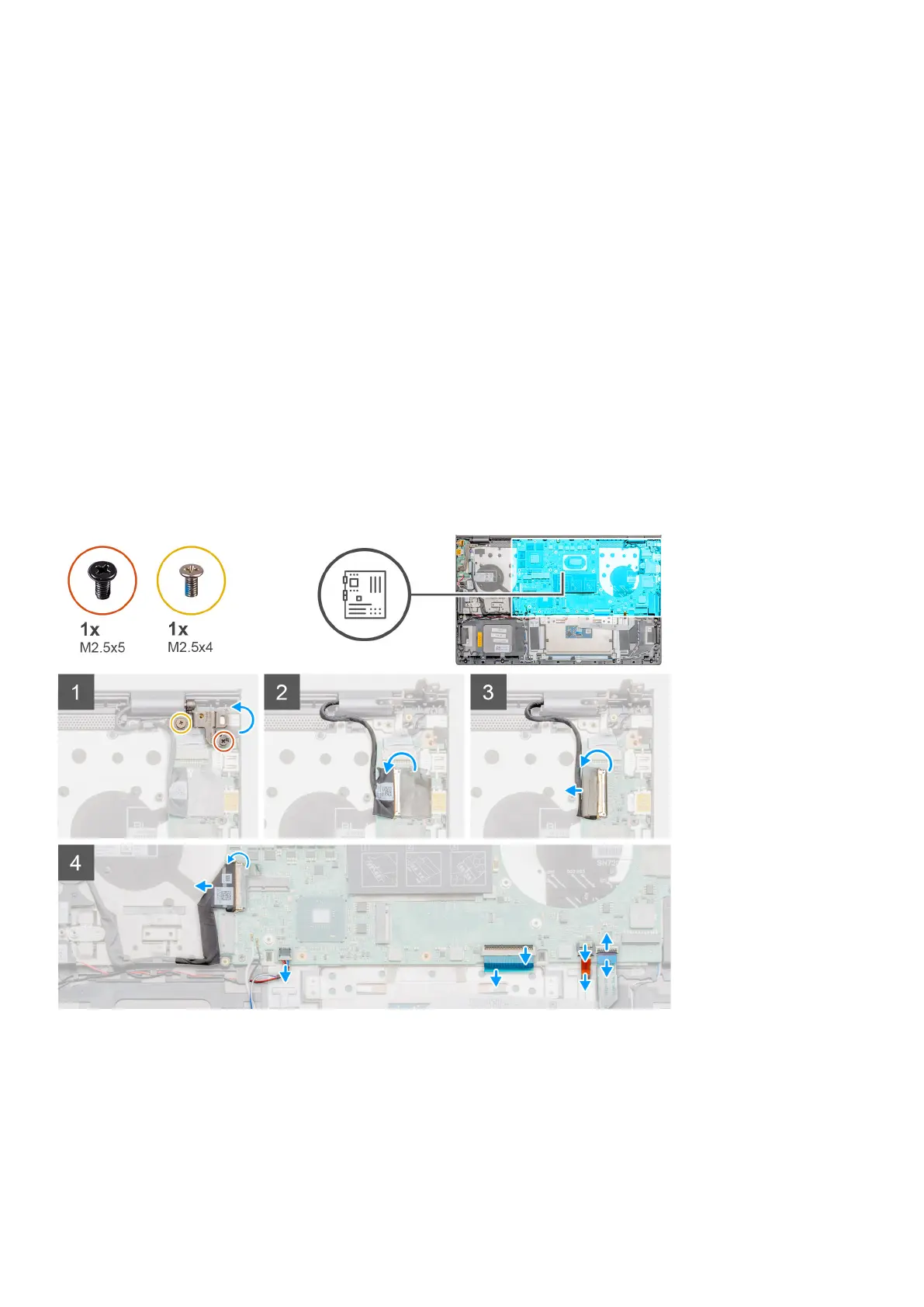

The figure indicates the location of the system board and provides a visual representation of the removal procedure.
56 Disassembly and reassembly
