Power button with fingerprint reader (optional)
Removing the power button and optional fingerprint
reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the GPU fan.
5. Remove the I/O board.
About this task

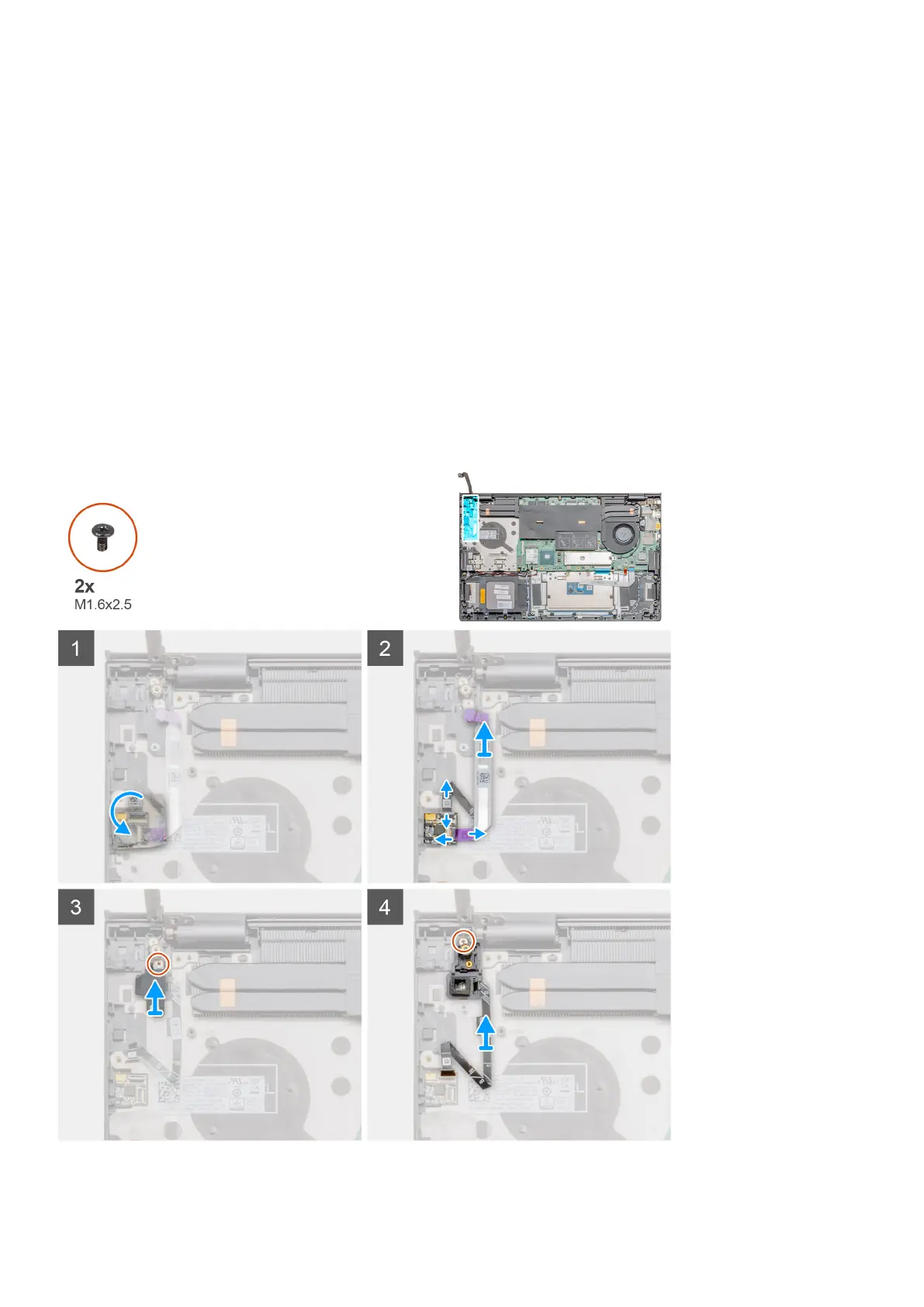

The figure indicates the location of the power button with optional fingerprint reader and provides a visual representation of the removal
procedure.
44 Disassembly and reassembly
