Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN.
About this task

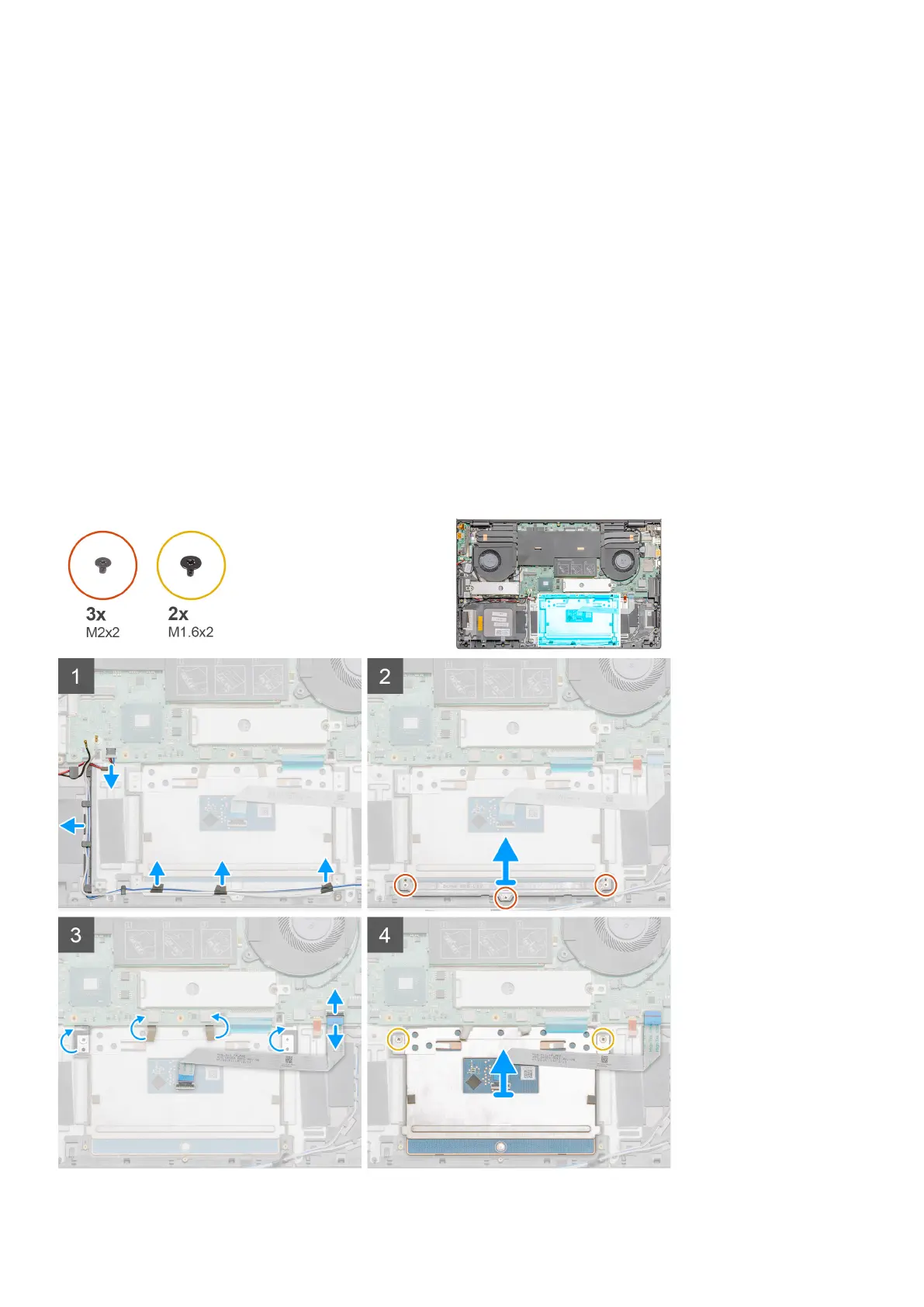

The figure indicates the location of the touchpad and provides a visual representation of the removal procedure.
Disassembly and reassembly 49
