Delta Controls eZVP-440 User Manual

eZV-440 Version 2.1 Application Guide
Page 14 of 67
Document Edition 2.5

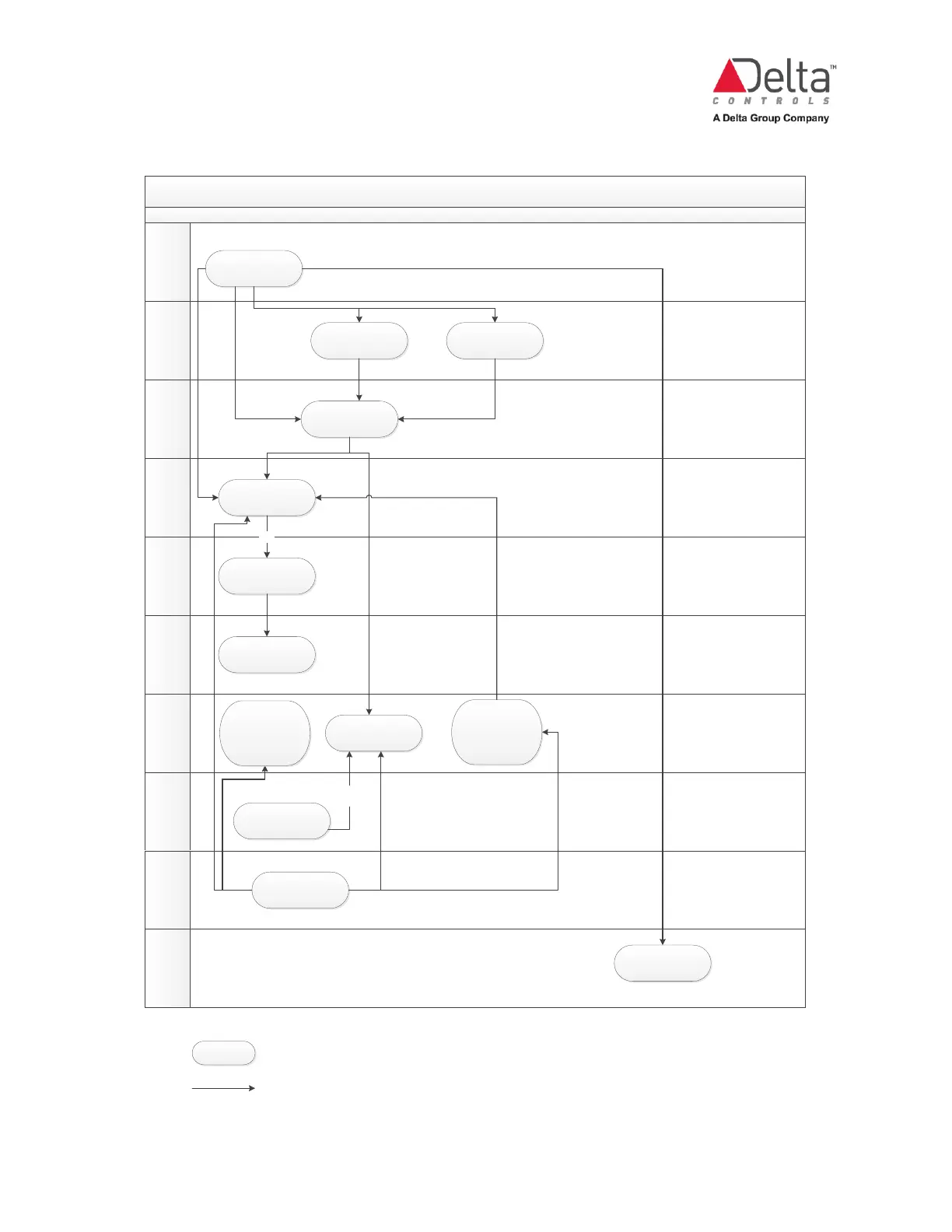

enteliZONE VAV Algorithm Flowchart
Temp Setpoint
Manager
Occupancy
Manager
Heat/Cool
Manager
Air Flow
Setpoint
Manager
Flow Loop
Manager
VAV/VVT
Damper
Manager
Heating Staging
Manager
Duct Status
Manager
Box Mode
Manager
Demand Control
Ventilation
MV800 Occupancy
Mode
AV
800 CurrentHeating
Setpoint
AV801 CurrentCooling
Setpoint
AV802 HeatCool Load
AV830
Air Flow
Setpoint
AV831 Damper
Demand
VVT
AV832 DamperCmd
AV808 Air Flow
Demand
AV803 Heat1
AV804 Heat2
AV805 Heat3
BV800 Air Flow Status
Hydronic and
Electric Duct
MV
801
VAVDuct
1BoxMode
Point(s) in each algorithm manager box can be used to override the
algorithm manager
Relationship between points
AV810
Fan1
AV813 DemandCtrlVent
