LINKnet I/O Tab
eZV-440 Version 2.1 Application Guide
Document Edition 2.5
4. Set up the backlight options:
The color of the backlight.
The intensity of the backlight on a button press.
The intensity of the backlight when the network
sensor is idle.
Set Up a DNS-24L Network Sensor
The graphic only enables the fields that are relevant to the model number of the DNS-24L
network sensor. Use this section to set up the sensor or sensors that are included with your
DNS-24L device.
Configurable controllers can only connect to 1 LINKnet device at a time.
This LINKnet device has to have a device address of “1” in order for it to
work with the controller algorithm. Multiple LINKnet devices (up to 4) are
only supported by the programmable controllers.
To set up the temperature sensor:
See the temperature sensor set up section under the eZNS on page 33
.
To set up the humidity sensor:
See the humidity sensor set up section under the eZNS on page 33
.
To set up a CO2 sensor:
See the CO
2 sensor set up section under the eZNS on page 34.
To set up an occupancy sensor:
See the occupancy sensor set up section under the eZNS on page 34
.

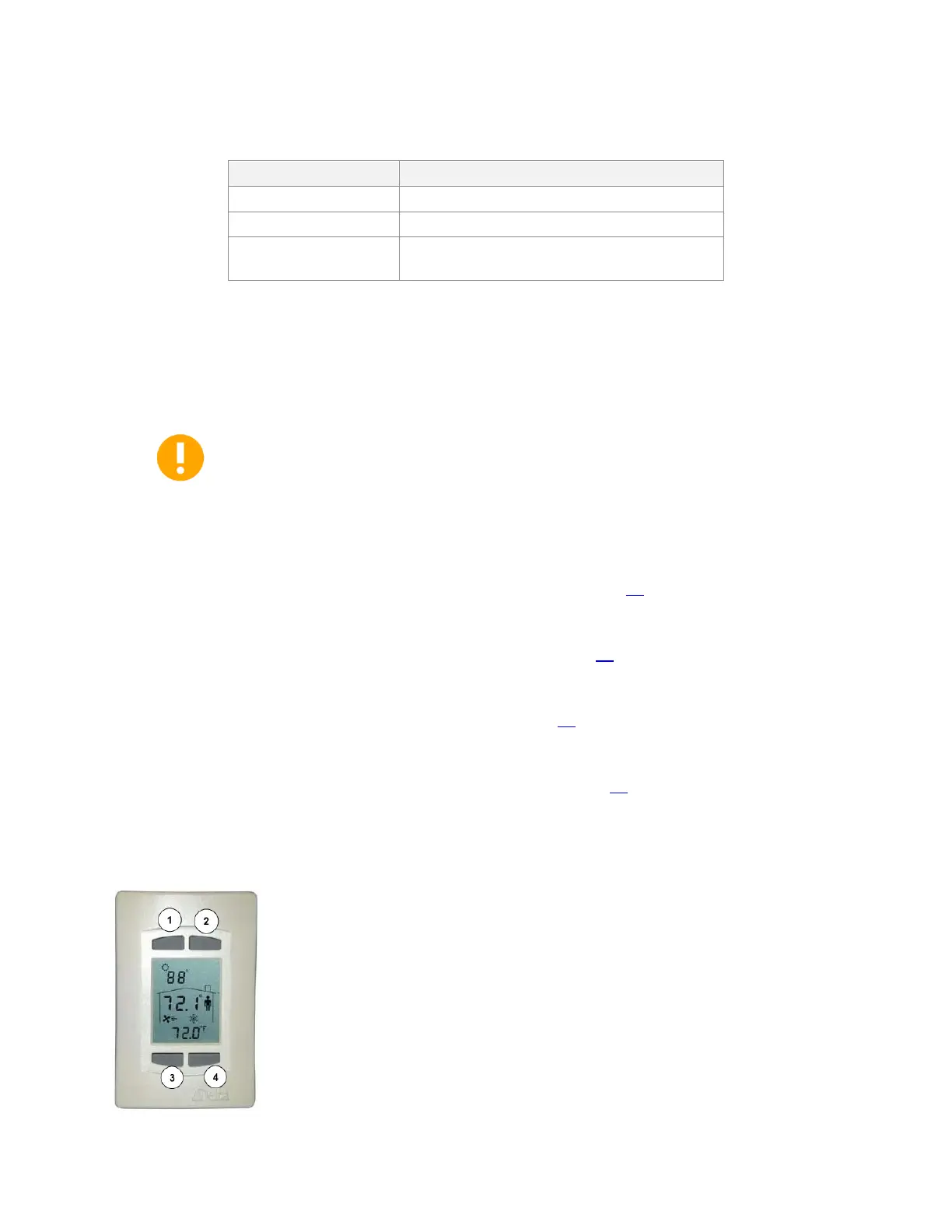

To set up the buttons on the DNS-24L:
You can program the functionality of each button on the network sensor using the configuration
graphic. The buttons on the DNS-24L are numbered 1 to 4 in the graphic.
