Chapter 8 MODBUS Communications| ASDA-A&A+ Series
8-2 Revision April 2009
NOTE
1) Recommended maximum cable length is 15m (50ft.). Please note, RFI / EME noise should be kept to a
minimum, communication cable should kept apart from high voltage wires. If a transmission speed of
38400 bps or greater is required, the maximum length of the communication cable is 3m (9.84ft.) which
will ensure the correct and desired baud rate.
2) The number shown in the pervious figure indicates the terminal number of each connector.
RS-485, RS-422

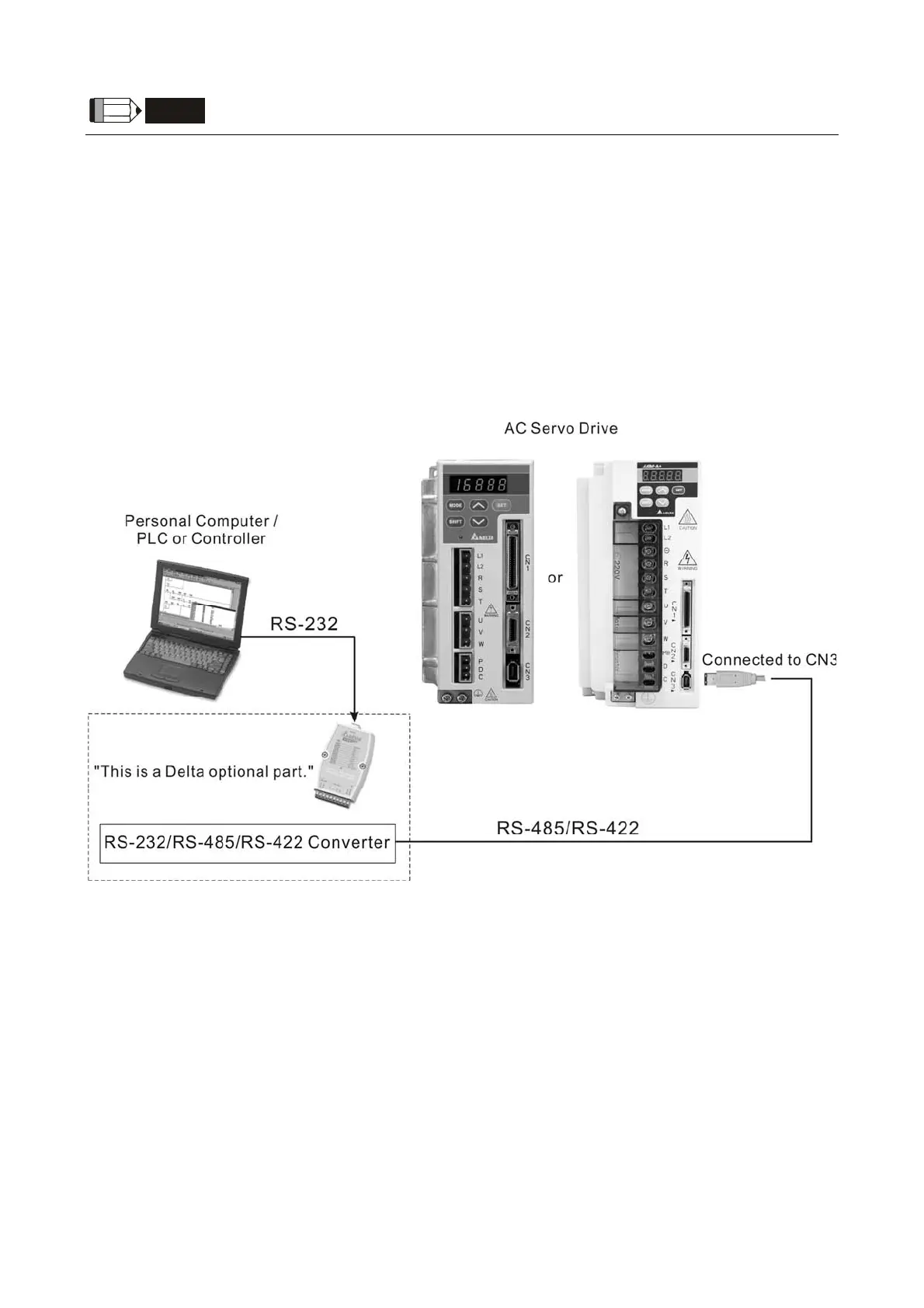

îš„ Configuration
