Chapter 12 Application Examples|ASDA-A&A+ Series
12-30 Revision April 2009

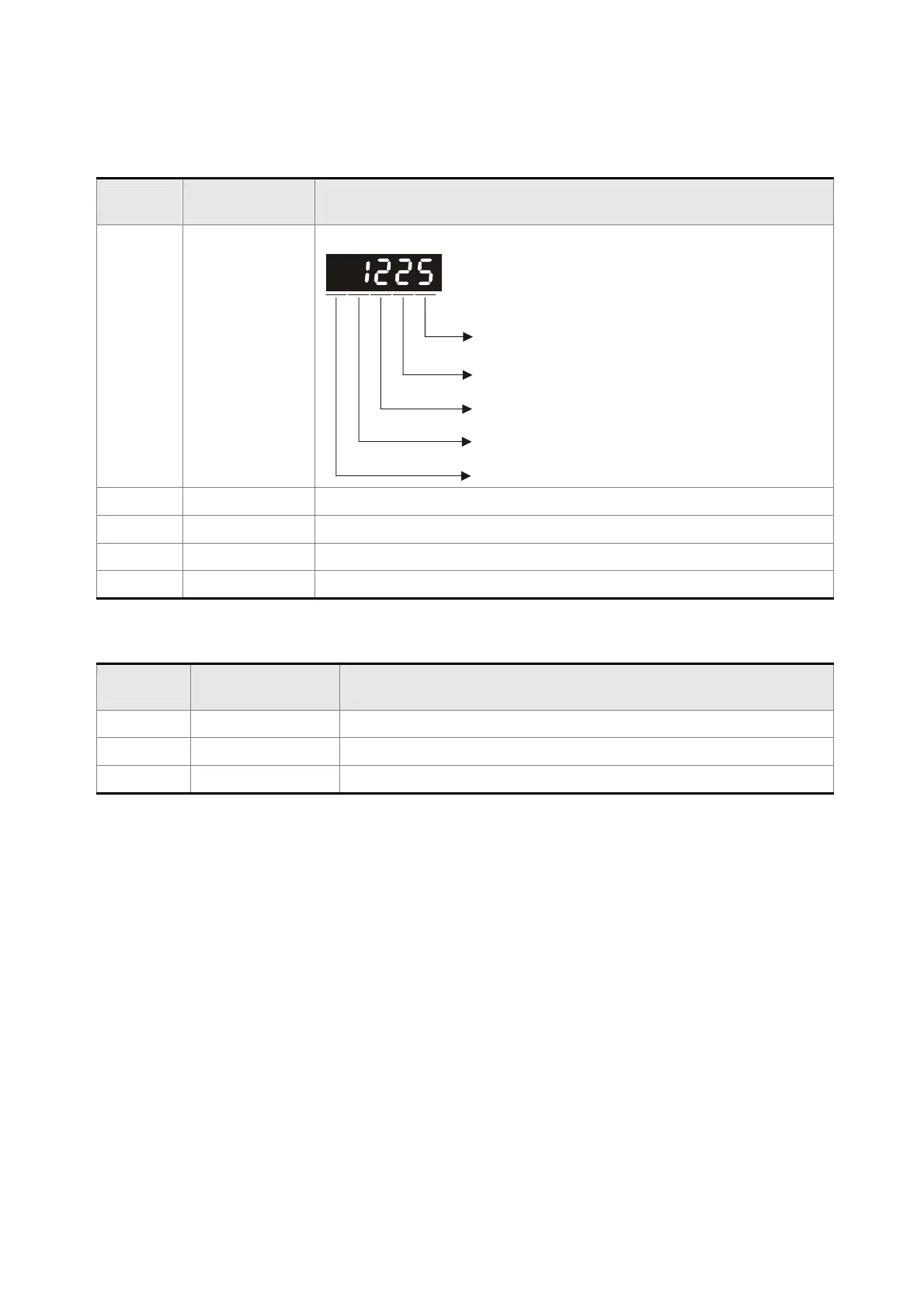

12.8 Homing Function
ī Relevant Parameters Description
Parameter
Communication
Address
Parameter Description
P1-47 012FH Homing Mode
No use
: Home Sensor Type and Homing Direction
B: Homing Moving Method
C: Homing SettingEnable
D: Homing Stop Setting
P1-48 0130H 1st Speed Setting of High Speed Homing
P1-49 0131H 2nd Speed Setting of Low Speed Homing
P1-50 0132H Homing Offset Rotation Number
P1-51 0133H Homing Offset Pulse Number
ī Relevant Parameters Description, cont.
Parameter
Communication
Address
Parameter Description
P1-34 0122H Acceleration Time
P1-35 0123H Deceleration Time
P1-36 0124H Accel /Decel S-curve
ī Explanation of Homing Mode
A: Home Sensor Type and Homing Direction
Left or right limit switch can be used as a reference āHomeā for homing function. It also can use extra sensor,
such as proximity switch or photo switch as reference āHomeā. When the servo motor runs within one
revolution only, users also can set Z-phase pulse as a reference āHomeā.
A=0: Forward homing and CCWL limit input point is regarded as a rough reference āHomeā. When home is in
position, CCWL will turn into limit input function. If trigger CCWL afterward, the limit alarm will occur.
When use limit input point as a rough reference āHomeā, we recommend users to set B=0, i.e. return to
find Z-phase pulse during homing and regard Z-phase pulse as a precise mechanical āHomeā.
A=1: Reverse homing and CWL limit input point is regarded as a rough reference āHomeā. When home is in
position, CWL will turn into limit input function. If trigger CWL afterward, the limit alarm will occur. When
use limit input point as a rough reference āHomeā, we recommend users to set B=0, i.e. return to find Z-
phase pulse during homing and regard Z-phase pulse as a precise mechanical āHomeā.
