Revision April 2009 3-1
Chapter 3 Connections and Wiring
This chapter provides information on wiring ASDA-A and ASDA-A+ series products, the descriptions of I/O
signals and gives typical examples of wiring diagrams.
3.1 Connections
3.1.1 Connecting to Peripheral Devices
In Figure 3.1 and 3.2, it briefly explains how to connect each peripheral device.

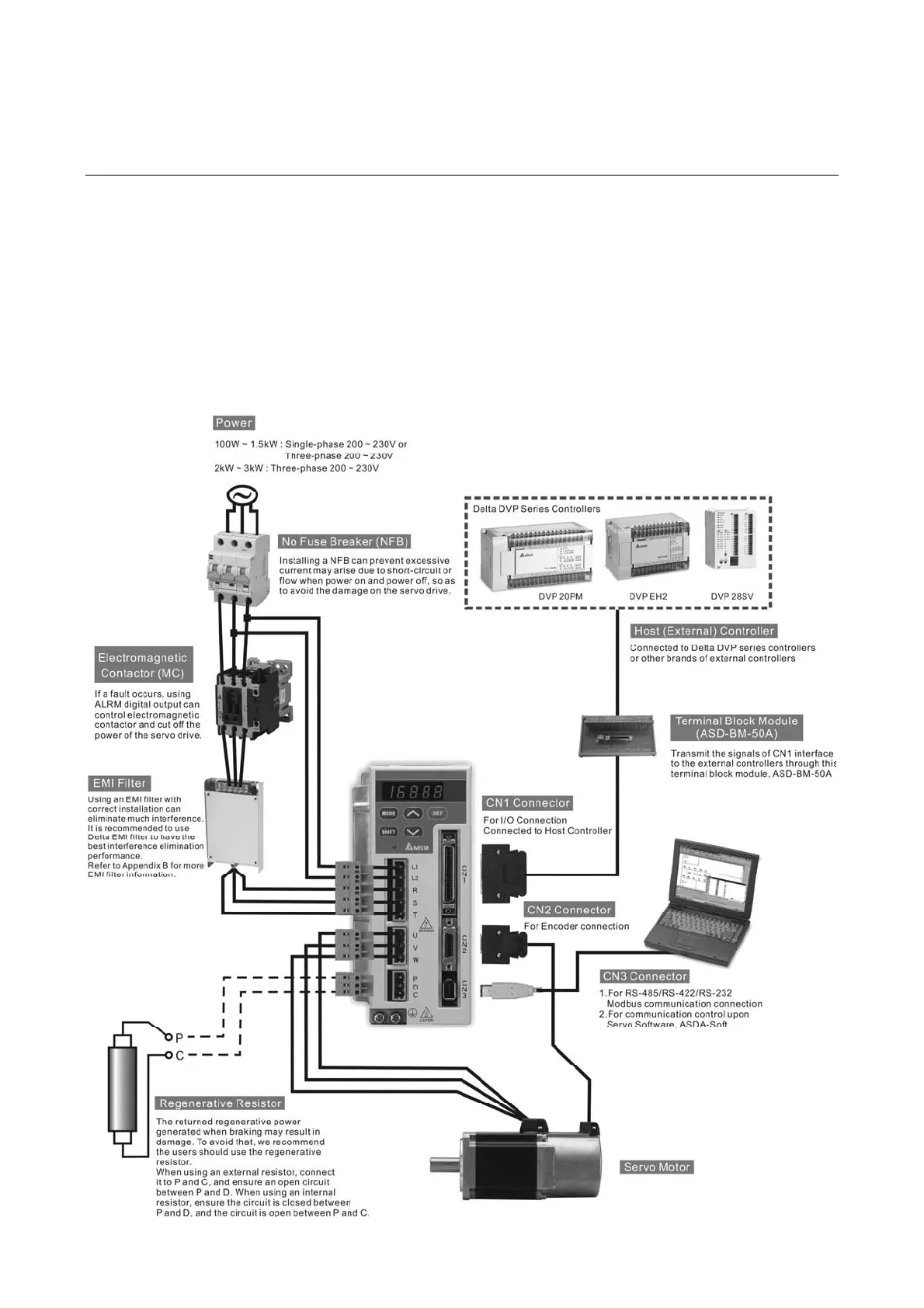

Figure 3.1 (ASDA-A Series)
