Chapter 11 Specifications|ASDA-A&A+ Series
Revision April 2009 11-25

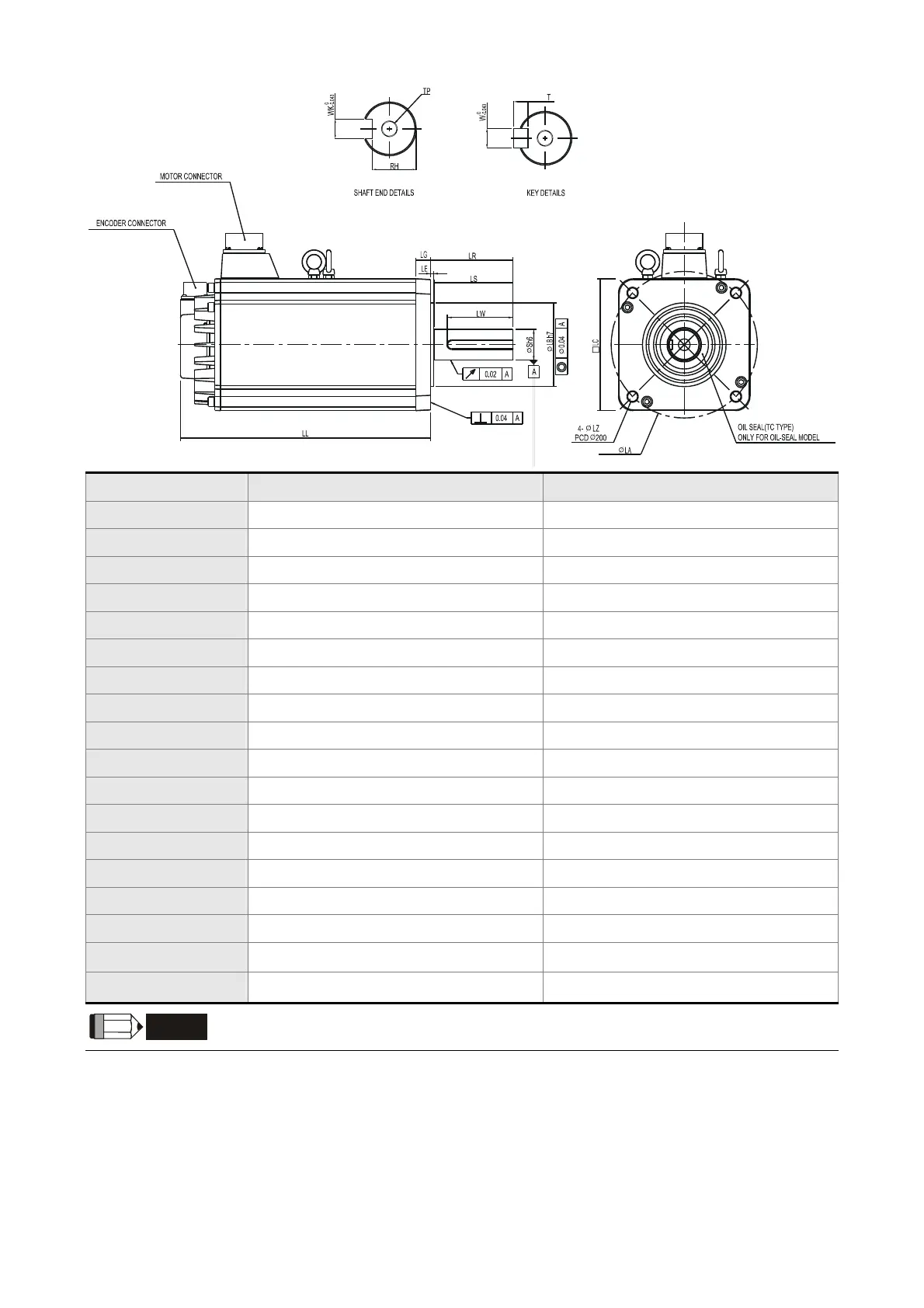

Model ECMA-F218553 ECMA-F218753
LC 180 180
LZ 13.5 13.5
LA 200 200
S 42 42
LB 114.3 114.3
LL 279.7 342.0
LR 113 113
LE 4 4
LG 20 20
LS 108.5 108.5
LW 90 90
RH 37 37
WK 12 12
W 12 12
T 8 8
TP M16, Depth32 M16, Depth32
Weight (without brake)
30.5（67.24） 37.0（81.57）
Weight (with brake)
36.0（79.37） 47（103.62）
NOTE
1) Dimensions are in millimeters. Weights are in kilograms (kg) and (pounds (lbs)).
2) Dimensions and weights of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for model
explanation.)
4) Actual measured values are in metric units. Dimensions and weights in (imperial units) are for reference
only.
