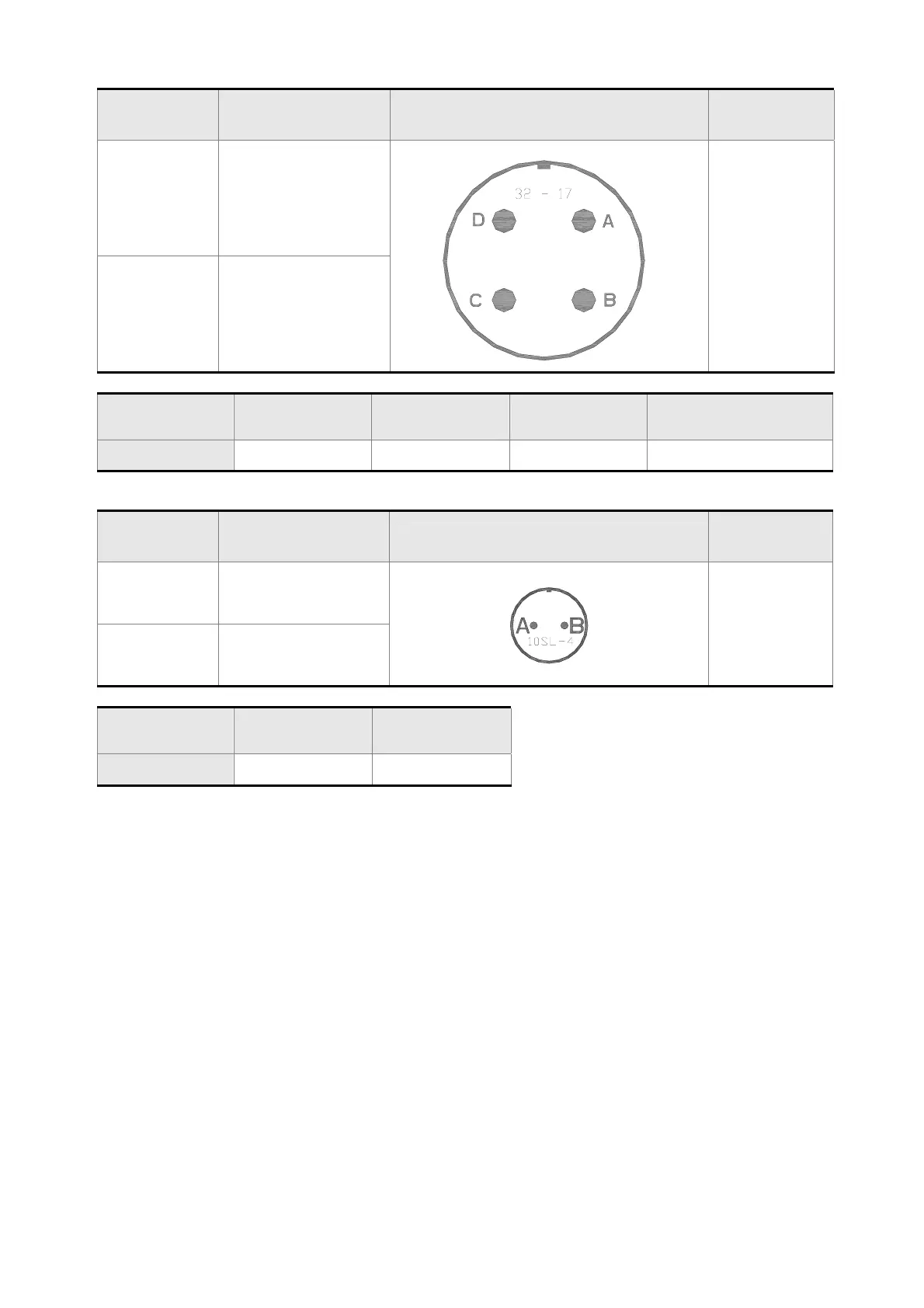

Chapter 3 Connections and Wiring|ASDA-A&A+ Series
Revision April 2009 3-9
Servo Drive
Power Rating
Motor Part Number
Description
U, V, W Connector
Terminal
Identification
5.5kW ECMA-F21855îš…3
7.5kW ECMA-F21875îš…3
E
Terminal
Identification
U V W CASE GROUND
E A B C D
Servo Drive
Power Rating
Motor Part Number
Description
Electromagnetic Brake Connector
Terminal
Identification
5.5kW ECMA-F21855îš…3
7.5kW ECMA-F21875îš…3
F
Terminal
Identification
BRAKE1 BRAKE2
F A B
